Sound-insulated inline fan Stream EC 100

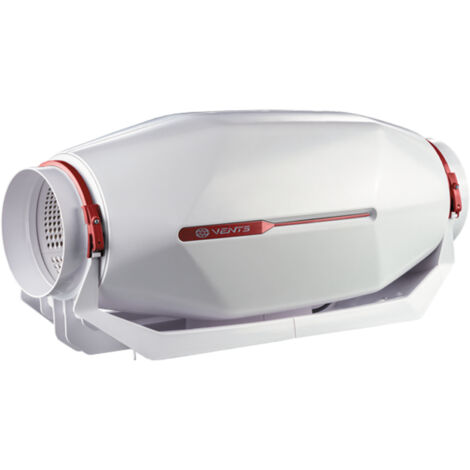

Name: Sound-insulated inline fan Stream EC 100
Brand: VENTS
SKU: Stream EC 100
Price: 289.99 GBP
Availability: InStock

Sold by creoven

Product information

Description

General description

The Sound-insulated inline fan Stream EC 100 is designed for efficient air movement in various applications, including exhaust and supply air systems. Its robust construction and sound insulation features make it ideal for both residential and commercial use.

Technical specifications

Voltage: 220-240 V ~ 50/60 Hz

Housing colour: grey

Housing material: plastic

Nominal size: 100 mm

Speed levels: 1

Wattage: 39 W

Amperage: 0.36 A

Revolutions per minute: 3168

Airflow rate: 295 m³/h (82 l/s)

Sound pressure level Lp-3m: 31 dB(A)

Temperature of transported air: -25 to +55°C

Sound / heat insulation: 50 mm mineral wool layer

Protection class: IPX4

Protection class motor: IP44

Dimensions: Length 752 mm, Height 273 mm, Width 253 mm

Weight: 5 kg

Compatibility and accessories

Includes mounting bracket

Installation

Can be mounted in any position

Features

Brand
VENTS
Width
25.3 cm
Height
27.3 cm
Depth
75.2 cm
Weight
5 kg
