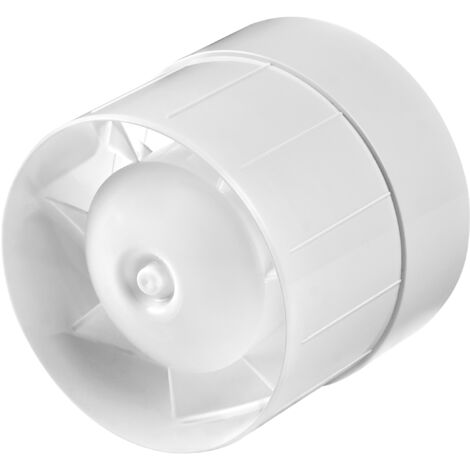

Inline fan WKA 100

Product out of stock

Product information

Description

General description

The Inline fan WKA 100 is designed for the efficient transport of small to medium airflow volumes over short distances with minimal air resistance. It is suitable for both air supply and air extraction, making it ideal for use in small bathrooms, washrooms, kitchens, and similar spaces.

Technical specifications

Voltage: 220-240 V ~ 50 Hz

Housing colour: white

Housing material: ABS

Nominal size: 100 mm

Wattage: 13 W

Revolutions per minute: 2550

Airflow rate: 105 m³/h

Sound pressure level Lp-3m: 36 dB(A)

Total pressure Pmax.: 35 Pa

Diameter neck: 104 mm

Length: 89 mm

Weight: 0.4 kg

IP code: IPX4

Ball-bearing motor

Installation

Can be mounted in any position.

Features

Brand
AWENTA
Colour
White
Shape
Cylindrical
IP rating
IPX4
Material
Acrylonitrile butadiene styrene (ABS)
Air flow
105 m³/h
Integrated non-return valve
Yes
Height
8.9 cm
Weight
400 g
Power
13 W
Noise level
36 dB
Pcs per pack
1
Ball bearings
Yes
Type of lawn aerator
Classic
ManoMano Reference
ME51308476
MMID
272838065771
Product code
WKA100
EAN
5905033296558

Advice from

Bathroom extractor fan buying guide

Bathroom extractor fans renew stale air. The flow rate required to circulate the air is calculated using a formula based on the size of the bathroom. Air extractors, MEV systems, window or centrifugal extractor fans, read on for our tips on how to ventilate and banish humidity from the bathroom.
