Starrett 66 Thickness and Feeler Gauge Set – 26 Precision Leaves (0.0015" to 0.025")

Name: Starrett 66 Thickness and Feeler Gauge Set – 26 Precision Leaves (0.0015" to 0.025")
Brand: STARRETT
SKU: BM597
Price: 53.81 GBP
Availability: InStock

Sold by GravaHaus

Product information

Description

General description

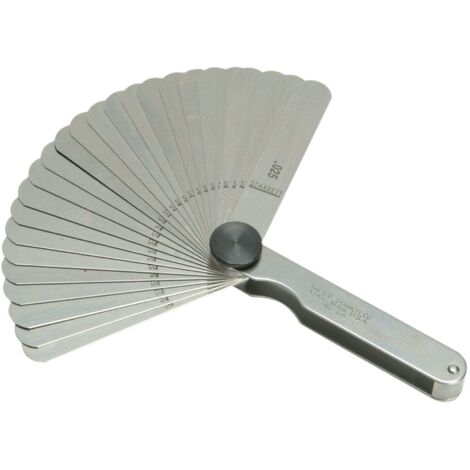

This is a set of 26 feeler gauges made of tempered steel, designed for precise measurement and adjustment tasks. The gauges are used to check and set tappets, spark plugs, distributor points, bearing clearances, gear play, piston rings, pins, and narrow slots.

Technical specifications

Number of blades: 26

Blade width: 1/2 inch

Blade length: 3-1/32 inches

Measurement range: 0.0015 to 0.025 inches

Measurement steps: 0.0015, 0.002, 0.0025, and from 0.003 to 0.025 inches in 0.001-inch increments

Material: Steel, tempered for durability

Compatibility and accessories

Compatible with standard automotive and mechanical measurement tasks

Includes blades that can be easily removed and replaced

Installation

No installation required; simply select the appropriate blade for your measurement. Use the locking screw to secure blades in position during measurement.

Usage

Insert the blades into the narrow slots or gaps to measure or set clearances

Adjust tappets, spark plugs, distributor points, and other components as needed

Lock blades in place for accurate readings and adjustments

Other information

Designed for precision work in automotive, mechanical, and home improvement projects.

Features

Brand
STARRETT
Width
58 mm
Material
Steel
Measurement type
Mechanical
ManoMano Reference
ME53996830
