T04E T3 Universal TURBO TURBOCHARGER 4 BOLTS T3 5 BOLTS flange 1.6L 1.9L 2.0L

Name: T04E T3 Universal TURBO TURBOCHARGER 4 BOLTS T3 5 BOLTS flange 1.6L 1.9L 2.0L
Brand: MAXPEEDINGRODS
SKU: S8CRKV
Price: 150.79 GBP
Availability: InStock

~~£211.11~~

Sold by maXpeedingrods GB

Product information

Description

General description

This T04E T3 Universal Turbocharger is designed for universal application, fitting 1.5L to 2.5L 4/6 cylinder engines with a power output of up to 400+ HP. It operates at a maximum boost of 18PSI (1.2Bar) and features both T3 and T4 flange patterns for versatile installation.

Technical specifications

Flange: T3 T4 4 bolt and standard T3 5 bolt flange patterns

Cooling Type: Oil Cooled

Internal Wastegate: No

Bearing Type: Journal Bearing

Compressor Trim: 48.1

Compressor A/R: 0.5

Compressor Inducer: 52.7

Compressor Exducer: 76

Turbine Trim: 74.2

Turbine A/R: 0.57

Turbine Inducer: 64.8

Turbine Exducer: 55.8

Compressor Outlet: 42mm (inside diameter), 52mm (outer diameter)

Compressor Inlet: 68mm (inside diameter), 77mm (outer diameter)

Other information

100% balancing test performed using VSR machine technology

Materials used include special K418 alloy for the turbine wheel, capable of withstanding high temperatures up to 900 degrees Celsius

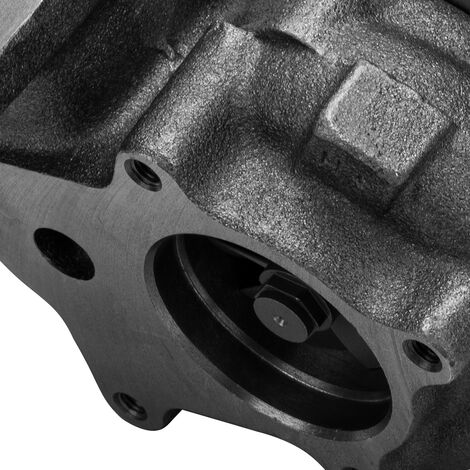

Turbine housing made from ductile iron QT450-10, withstands temperatures up to 700 degrees Celsius

Aluminum blades are precision machined and forged

Lightweight design for reduced noise and increased response

2 years warranty under normal use, unlimited mileage

Professional installation is highly recommended; instruction is not included

Additional parts required for complete installation

External wastegate required as there is no internal wastegate

Features

Brand
MAXPEEDINGRODS
Length
27 cm
Width
24.5 cm
Height
22.5 cm
Weight
7250 g
