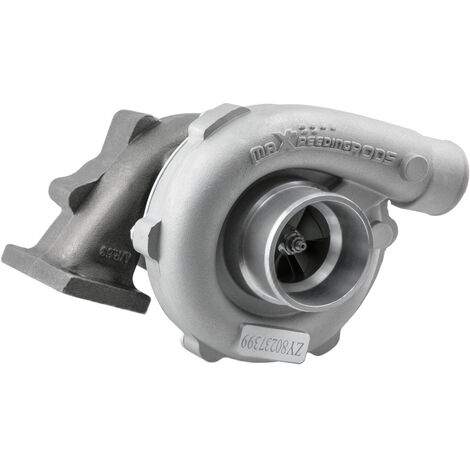

T04E T3/T4 .63 .5 TURBO TURBOCHARGER COMPRESSOR 300+HP

Name: T04E T3/T4 .63 .5 TURBO TURBOCHARGER COMPRESSOR 300+HP
Brand: MAXPEEDINGRODS
SKU: NSJBAY
Availability: OutOfStock

Product out of stock

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Product information

Description

General description

This T04E T3/T4 turbocharger compressor is designed for universal application, fitting 1.5L to 2.5L 4/6 cylinder engines with a maximum output of 400+ HP and capable of handling up to 18 PSI (1.2 Bar). It is essential to confirm that your vehicle's engine displacement falls within this range and that there is adequate space for installation.

Technical specifications

Exhaust Inlet: Turbo Manifold

Flange: T3 T4 4 bolt flange patterns

Exhaust Outlet Flange: Standard T3 5 bolt flange pattern

Cooling Type: Oil Cooled

Wastegate: Without Wastegate

Oil Inlet: M12*1.25

Oil Outlet: 2*M8*1.25

Compressor Trim: 48.1

A/R: 0.5

Inducer: 52.7

Exducer: 76

Turbine Trim: 74.2

A/R: 0.63

Inducer: 64.8

Exducer: 55.8

Installation

Professional installation is highly recommended.

Instruction manual is not included.

Additional parts will be needed for a complete installation.

Consult a professional turbo installer for details.

Note: This turbocharger does not have an internal wastegate; an external wastegate must be installed on your manifold.

Usage

Boosts engine horsepower significantly.

Increases engine power and torque output.

Maintains combustion chamber pressure and fuel/air load.

Other information

100% balancing test performed using VSR machine technology.

Constructed with high-quality materials for durability and strength.

Turbine wheel made from special K418 alloy, stable under high temperatures up to 900 degrees Celsius.

Turbine housing made from ductile iron QT450-10, withstands temperatures up to 700 degrees Celsius.

Aluminum blades with precision machining forging.

Lightweight design reduces noise and increases response without compromising comfort or longevity.

2 years warranty under normal use, unlimited mileage.

Features

Brand
MAXPEEDINGRODS
Material
Steel
ManoMano Reference
ME68901149
MMID
666589733785
Product code
NSJBAY
EAN
6941324417645
