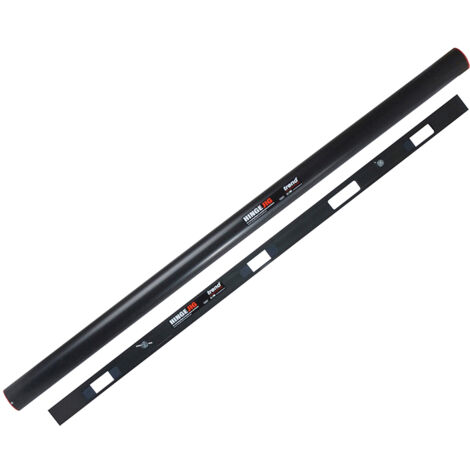

Trend Hinge Recessing Jig

Name: Trend Hinge Recessing Jig
Brand: TREND
SKU: HINGE/JIG
Price: 259.98 GBP
Availability: InStock

~~£264.43~~

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by DataPowerTools and 4 other sellers

Product information

Description

General description

The Trend Hinge Jig is a portable template set designed for recessing hinges in wooden doors and frames. It is easy to use with minimal setup time, allowing for quick and accurate completion of the job. This jig is ideal for both on-site use and in joinery shops, enhancing productivity with excellent results. It features four apertures for fire door requirements and eliminates the need for conventional marking out. The setup is quick and simple, as the hinge itself serves as the pattern, ensuring clean and accurate recesses every time.

Technical specifications

Hinge Sizes Possible:

Length Min: 67mm (2 5/8")

Length Max: 127mm (5")

Width Min: 9.5mm (3/8")

Width Max: 35mm (1 3/8")

Door Sizes Possible:

Height Min: 1955mm (6' 5")

Height Max: 2100mm (6' 10")

Thickness Min: 16mm (5/8")

Thickness Max: 44mm

Router Compatibility: Light duty plunge router with 1/4 inch collet

Required Router Cutter: Long reach, 12mm diameter with 70mm overall length

Patent No.: GB2285410

Compatibility and accessories

Suitable for timber-based doors and square butt hinges

Includes:

4 x Apertures

2 x Bradawls with spacer

1 x 16mm guide bush

1 x T-Handle hex key

1 x 4mm spacing gauge

1 x Plastic storage tube

Installation

Unibase may be needed for certain router models

Usage

Designed for recessing hinges in wooden doors and frames

Quick and simple setup using the hinge as the pattern

Achieves clean and accurate recesses every time

Other information

Warranty: 12 months

Note: Router not included

Features

Brand
TREND
Colour
Red
Width
110 mm
Material
Wood
Weight
1000 g
Mitre saw accessory type
Blade fastener
Table saw accessory type
Stop
ManoMano Reference
ME1355529
MMID
471456592943
Product code
HINGE/JIG
EAN
5027654503300
