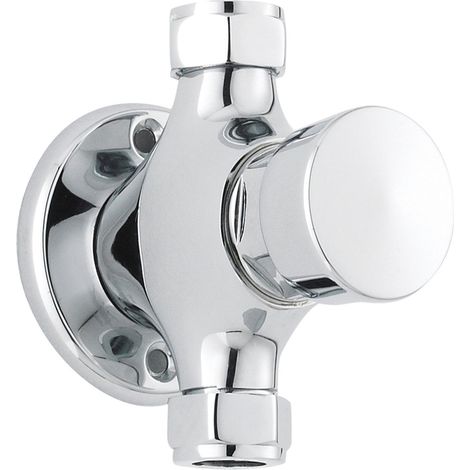

Nuie Chrome Exposed Non-Concussive Shower Valve - A3788

Name: Nuie Chrome Exposed Non-Concussive Shower Valve - A3788
Brand: NUIE
SKU: a3788
Price: 45.95 GBP
Availability: InStock

Sold by Heat & Plumb and 1 other seller

Often purchased together

Product information

Description

General description

The Nuie Self Closing Exposed Shower Valve is designed for commercial use, featuring a non-concussive mechanism that includes a timed flow to conserve water. This valve effectively addresses water wastage concerns in high-traffic shower areas, ultimately saving costs over time. Its versatility allows it to be compatible with various plumbing systems, operating at a minimum pressure of 0.2 bar.

Technical specifications

Valve Type: Manual

Position: Exposed

Diverter: No

Valve Controls: 1 Handle

Mounting Type: Wall

Height: 100mm

Width: 65mm

Depth: 90mm

Inlet Connection: 15mm

Material: Brass

Finish: Chrome

Minimum Pressure: 0.2 Bar

Maximum Pressure: 3.0 Bar

Weight: 0.53 kg

Flow Rate @ 0.5 Bar: 12.4 l/min

Flow Rate @ 1.0 Bar: 17.4 l/min

Flow Rate @ 2.0 Bar: 24.7 l/min

Flow Rate @ 3.0 Bar: 31 l/min

EAN Barcode: 5055369016570

Manufacturer Part Number: A3788

Installation

During installation, extra care must be taken to avoid damaging the fittings. The valve can be fitted either vertically or horizontally.

Usage

This shower valve supplies water to one outlet and is factory set to provide a timed flow of water for 15 seconds, making it suitable for use with commercial shower kits.

Other information

The manufacturer provides a 12-month guarantee against faulty workmanship or materials (excluding serviceable parts), provided the valve has been installed, cared for, and used according to the instructions.

Features

Brand
NUIE
Colour
Grey
Warranty
5 year(s)
Material
Brass
Adapted for PRM
No
