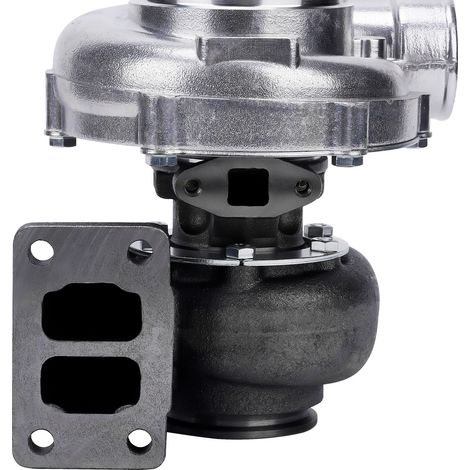

Universal T70 Turbo A/R .7 0.82 T3 V-Band Flange Oil Cooling 500HP Turbocharger

Name: Universal T70 Turbo A/R .7 0.82 T3 V-Band Flange Oil Cooling 500HP Turbocharger
Brand: MAXPEEDINGRODS
SKU: RSLDA1
Price: 139.82 GBP
Availability: InStock

~~£195.75~~

£20Offered

To be applied on the payment page

Offer valid today only.

Sold by maXpeedingrods GB

Product information

Description

General description

This T70 Turbocharger is designed to generate over 500HP, making it suitable for large displacement engines ranging from 2.0L to 3.0L. It features a universal application for turbo manifolds with a T3 flange and is ideal for enhancing the performance of your vehicle. Professional installation is highly recommended, as some modifications may be necessary depending on the specific vehicle.

Technical specifications

Compressor Size:

Trim: 57

Inducer Diameter: 56.6 mm

Exducer Diameter: 75 mm

A/R: 0.82

Turbine Size:

Exhaust Inlet Flange: T3 Twin Scroll Flange

Exhaust Outlet Flange: 2.5'' V Band Flange

Turbine exhaust outlet: 79.8 mm (OD) / 63 mm (ID)

Trim: 61.6

Inducer Diameter: 74.4 mm

Exducer Diameter: 58.4 mm

A/R: 0.7

Cooling Type: Oil Cooled

Horse Power: up to 500HP

Bearing Type: Floating Bearing

Thrust Bearing: 270 Degrees

Turbo Type: Twin-Scroll

Condition: 100% Brand New

Package Size: 25*24*23 cm

Package Weight: 9560 g

Compatibility and accessories

This turbocharger is compatible with turbo manifolds featuring a T3 flange. Please confirm the size before purchasing, as it is not suitable for 3-inch V-band applications. You will receive exactly what is shown in the product images.

Installation

Professional installation is highly recommended. The degree of modification required will depend on your specific vehicle. Ensure that the oil drain line is positioned lower than the turbo itself and that the exhaust outlet is well sealed by welding. Before installing the new turbocharger, analyze and eliminate the cause of the previous turbo's failure, such as insufficient oil supply or foreign bodies in the intake area.

Usage

This turbocharger is designed to enhance the performance of vehicles with engines between 2.0L and 3.0L, providing a cost-effective power increase of 20-40%. It is built for durability and strength, featuring high oxidation stability and resistance to high temperatures.

Other information

Product Material:

Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700℃

Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃

Compressor housing: ZL104 aluminum - lightweight

Compressor wheel/blades: Cast aluminum blades – superior air tightness & corrosion resistance

Technology Advantage:

100% balancing test by TURBOTECHNICS VSR3

G3-min flow VNT turbo testing

Advanced actuator tester/programmer
