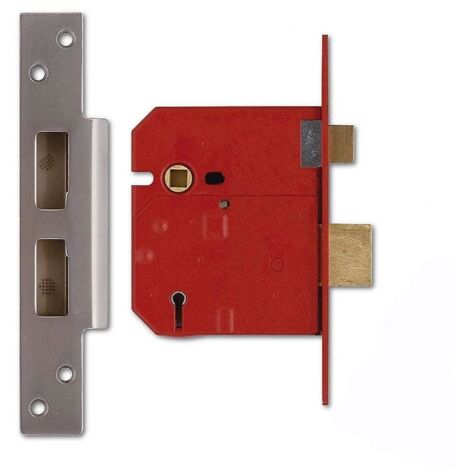

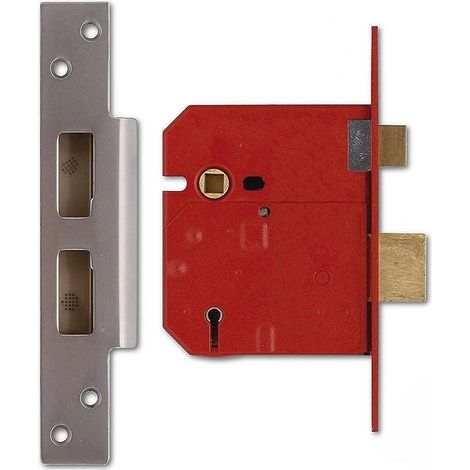

Union 2234E 5-Lever BS Mortice Sashlock in Satin Chrome Finish, 79.5mm (3-inch) Boxed

Description

• The Union 2234E 5 Lever British Standard Mortice Sashlock is designed for timber doors hinged on either side. It is suitable for doors up to 54mm thick. The lock features a 20mm deadbolt that can be locked or unlocked from either side using the key, providing secure deadlocking and increased resistance against forced entry. The lock includes anti-pick, anti-saw, and anti-drill security features, with a chamfered bolt design that enhances performance under side load testing and makes drilling attacks more difficult. It is supplied with a matching covered escutcheon and has a unique pierced casing to accommodate bolt-through door furniture. The lock is recommended by insurance companies, certified to BS3621:2007 (British Standard), and approved by the police Secured by Design initiative. It comes with a 15-year guarantee.

Specifications

• Case size: 79.5mm x 111mm (3 inches)
• Backset: 57.5mm (distance from door edge to center of keyhole)
• Centre distance: 57mm (distance from handle follower center to keyhole center)
• Deadbolt: Brass with hardened steel rollers
• Security level: 2-5 levers (higher number indicates higher security)
• Finish: Satin Chrome
• Rebate Kit: 2964 (available in 13mm, 19mm, or 25mm)
• Supplied with: 3 nickel-plated steel keys

Compatibility and Accessories

• Compatible with timber doors hinged on either side
• Includes rebate kit for different door thicknesses
• Designed to accept bolt-through door furniture

Installation

• Designed for mortice installation in timber doors
• Case size and measurements are provided for proper fitting
• Requires standard mortice preparation according to the specified dimensions

Usage

• Lock or unlock the deadbolt using the key from either side
• Provides secure deadlocking for timber doors
• Suitable for residential or commercial applications requiring high security
