UNION Y2234E-SC-3.00 2234E 5 Lever BS Mortice Sashlock Satin Chrome Finish 79.5mm 3in Visi UNNY2234EC30

Name: UNION Y2234E-SC-3.00 2234E 5 Lever BS Mortice Sashlock Satin Chrome Finish 79.5mm 3in Visi UNNY2234EC30
Brand: UNION
SKU: j2989pl05
Price: 40.18 GBP
Availability: InStock

~~£63.31~~

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by BuyaParcel and 4 other sellers

Product information

Description

General description

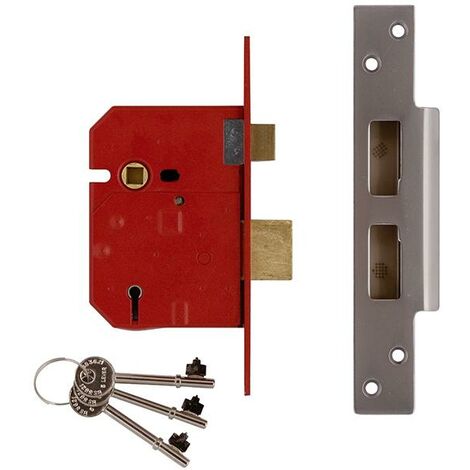

The Union 2234E 5 Lever British Standard Mortice sashlock is designed for timber doors that are hinged on either the left or right. It is suitable for doors with a thickness of up to 54mm. This sashlock features a 20mm deadbolt that can be locked or unlocked by a key from either side, providing secure positive deadlocking and enhanced resistance against attacks. The lock is equipped with anti-pick, anti-saw, and anti-drill security features, along with a chamfered bolt design that improves performance under side load testing.

Technical specifications

Case Size: 79.5mm x 111mm (3in)

Backset: 57.5mm

Centre: 57mm

Deadbolt: Brass with hardened steel rollers

Security Level: Ranges from 2-5 levers (higher number indicates more security)

Finish: Satin Chrome

Manufacturer Part Number: Y2234E-SC-3.00

EAN: 5011802036109

Compatibility and accessories

Rebate Kit 2964 (available in 13mm, 19mm, or 25mm)

Supplied with 3 steel nickel plated keys

Other information

Recommended by insurance companies

Kitemarked to BS3621: 2007 (British Standard)

Approved by the police Secured by Design initiative

Covered by a 15-year guarantee

Union 2234E 5 Lever BS Mortice Sashlock Satin Chrome Finish 79.5mm 3in Visi UNNY2234EC30

Features

Brand
UNION
Colour
Black
Anti-picking
Yes
Anti-drilling
Yes
Anti-splintering
Yes
Lock backset
57.5 mm
Cylinder included
No
Lock destination
Interior door
Strike plate included
Yes
Door material
Wood
Lock mechanism
Keyed chuck
Security level
5
Reversible bolt
Yes
Weight
1000 g
Lock mounting
Surface-mounted
Lock type
5 points
ManoMano Reference
ME1410693
MMID
849368213510
Product code
j2989pl05
EAN
5011802036109
