General description

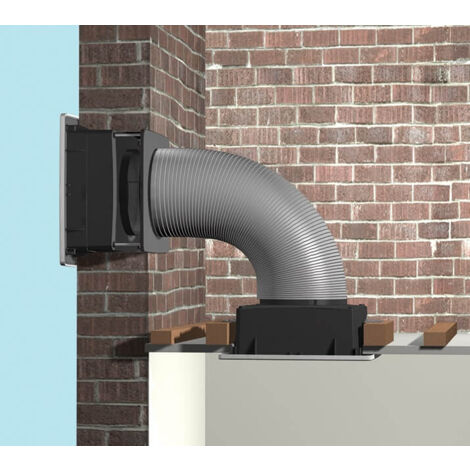

Vario Connection flange is designed for connecting flexible tubes to the DH roof hood, specifically for the ARI-Q/S and AR-Q/S fan range. It is available in various sizes, allowing for versatile installation options.Technical specifications
- Sizes available: TC 150, TC 230, TC 300
- Delivery includes: gasket and screws
- Dimensions for each model:
| Model | for size | Diameter Ø D ext. | A | B | C | H |
|---|---|---|---|---|---|---|
| DH 150 | 150 | 171 mm | 215 mm | 175 mm | 8 mm | 30 mm |
| DH 230 | 230 | 240 mm | 294 mm | 249 mm | 10 mm | 30 mm |
| DH 300 | 300 | 300 mm | 390 mm | 316 mm | 12 mm | 30 mm |
