General description

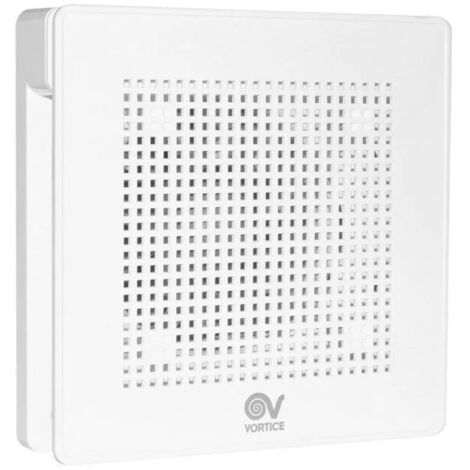

The Punto Evo ME 120 LL extractor fan is designed for efficient ventilation in small rooms and bathrooms. With a maximum airflow of 175 m³/h, it effectively removes moisture and odors, ensuring a comfortable environment. The fan features a sleek white housing made from impact-resistant and UV-resistant ABS plastic, making it durable for long-term use.Technical specifications
- Voltage: 220-240 Volt ~ 50 Hertz
- Wattage: 10 / 13 W (min. / max.)
- Current consumption: 0.06 / 0.08 A (min. / max.)
- Rotation speed: 1640 / 2040 rpm (min. / max.)
- Total pressure: 22.56 / 49.04 Pa (min. / max.)
- Sound pressure level: 24 / 32.3 dB(A) (min. / max.)
- Airflow: 120 / 175 m³/h (min. / max.)
- Protection code: IP45
- Protection class: II
- Service life: approximately 30,000 hours
- Weight: 0.77 kg
- Thermal overload protection
- Integral shutter flap to prevent cold air ingress
- Mounting options: walls, ceilings (horizontal, vertical, diagonal)
- Motor: 2-speed shaded pole motor with ball bearing
Compatibility and accessories
- Available types: ME 120 LL (standard), ME 120 LL T (time delay), ME 120 LL T PIR (motion sensor), ME 120 LL TP (timer), ME 120 TP HCS (humidity sensor)
Installation
Can be mounted on walls or ceilings in horizontal, vertical, or diagonal positions.Usage
Ideal for small rooms and bathrooms to improve air circulation and reduce humidity.Other information
