Centrifugal Duct Fan Quadro Micro I THCS UP

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by creoven

Product information

Description

General description

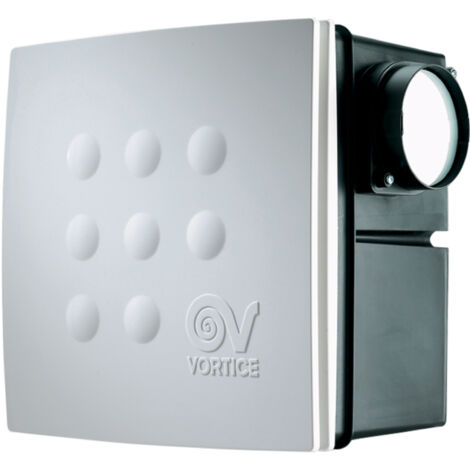

The Centrifugal Duct Fan Quadro Micro I THCS is designed for efficient ventilation in various settings. It features a sleek white housing made from durable, non-yellowing, UV-resistant ABS plastic. This fan is equipped with adjustable speed levels and a range of advanced features to ensure optimal performance and convenience.

Technical specifications

Voltage: 220-240 V ~ 50 Hz

Nominal diameter: 100 mm

Speed levels: 2

Wattage: 20 / 27 W

Current consumption: 0.1 / 0.12 A

Revolutions per minute: 1010 / 1450

Airflow rate: 75 / 100 m³/h

Total pressure Pmax: 196 / 218 Pa

Sound pressure Lp-3m: 26.3 / 34.3 dB(A)

Max. temperature for continuous operation: 50°C

IP code: IPX4

Insulation class: II

Diameter duct connector: 92 mm

Dimensions front cover: 258 x 258 x 34 mm

Total depth: 152 mm

Total depth with duct connector: 178 mm

Weight: 1.9 kg

Other information

Adjustable shut-off timer (3-20 min)

Humidity sensor (60-90%): fan turns off after expiration of the pre-set time once the humidity level falls below the pre-set value

Washable synthetic fibre fleece filter

Thermal overload protection

Self-lubricating bush bearings

Non-return valve prevents cold air from infiltrating once the fan is turned off

Mounting options: flush-mounted, any position

Exhaust nozzles on the side and back allow connection to a second room

Features

Brand
VORTICE
Colour
White
Shape
Square
IP rating
IPX4
Material
Acrylonitrile butadiene styrene (ABS)
Air flow
75 m³/h
With timer
Yes
Integrated non-return valve
Yes
Integrated moisture detection
Yes
Weight
1900 g
Depth
15.2 cm
Power
20 W
Noise level
26.3 dB
Pcs per pack
1
Ball bearings
Yes
Type of lawn aerator
Classic
Type of installation method
Mortise mount
ManoMano Reference
ME30902201
MMID
202467480789
Product code
12065
EAN
8010300120652
