General description

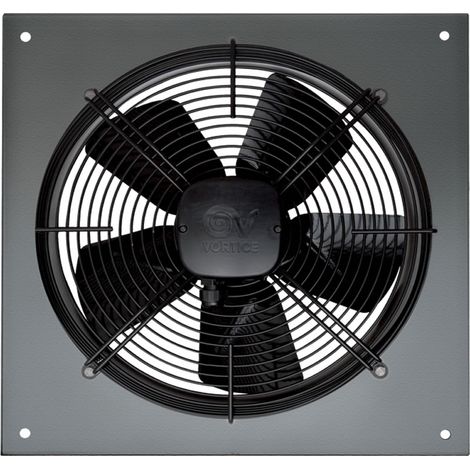

The Wall Fan A-E / T Series is designed for efficient air circulation in commercial and industrial environments. With a powerful airflow ranging from 785 to 9502 m³/h, this fan is suitable for various applications, including hospitals, warehouses, factories, clubs, offices, restaurants, and gyms. It features a robust construction with a weather-proof epoxy coating, ensuring durability and reliability.Technical specifications
- Voltage: 400 Volt / 50 Hertz, three-phase
- Protection code: IP54 (splash-proof)
- Material: Cold-rolled phosphated steel housing with grey hammered finish
- Impeller: Optimized, dynamically balanced, made of pressed steel with polyester powder coating
- Blades: 4 blades (models Ø 400, 450, 560), 5 blades (models Ø 250, 300), 7 blades (model Ø 500)
- Motor: Enclosed three-phased asynchronous motor with thermal overload protection
- Maximum ambient temperature: -30°C to 50°C
- Noise level: Low-noise operation
- Control: Rotation speed can be regulated with controller units (sold separately)
Dimensions and weight
| Type | Ø B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Ø G (mm) | Weight (kg) |
| E 254 T | 320 | 264 | 149 | 10 | 82 | 280 | 2.5 |
| E 304 T | 380 | 316 | 151 | 10 | 84 | 330 | 3.4 |
| E 354 T | 450 | 359 | 155 | 10 | 43 | 380 | 4.0 |
| E 404 T | 510 | 406 | 207 | 15 | 67 | 430 | 6.3 |
| E 454 T | 630 | 455 | 207 | 15 | 67 | 530 | 6.5 |
| E 504 T | 630 | 507 | 198 | 15 | 52 | 530 | 11.1 |
| E 506 T | 630 | 507 | 198 | 15 | 52 | 530 | 11.1 |
| E 564 T | 725 | 563 | 218 | 15 | 67 | 675 | 14.8 |
| E 566 T | 725 | 563 | 218 | 15 | 67 | 675 | 14.8 |
| E 636 T | 805 | 638 | 218 | 15 | 68 | 750 | 15.8 |
