General description

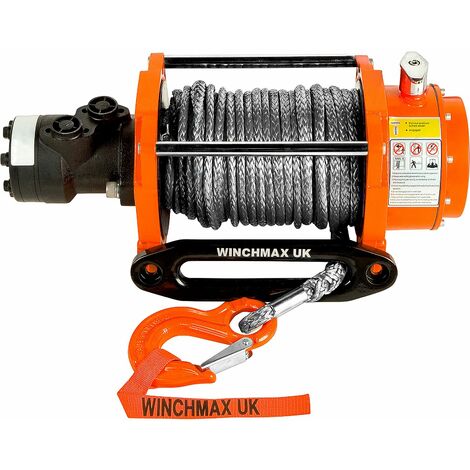

The 10,000lb (4,536kg) Original Orange Hydraulic Winch is designed for heavy-duty applications, making it ideal for recovery trucks, trailers over 7.5T, and various industrial, commercial, and agricultural uses. This winch features a robust 24V control system and comes equipped with a 25m x 10mm genuine Dyneema synthetic rope.Technical specifications
- Single Line Rated Pull: 10,000lb (4,536kg)
- Motor: Hydraulic
- Control: Remote switch, 4.5m lead, in and out
- Gear Train: 3 Stage Planetary
- Gear Reduction Ratio: 32:1
- Clutch: Sliding Ring Gear
- Braking Action: Automatic
- Drum Size: Diameter 88mm, Length 222mm
- Drum Finish: Black, painted
- Cable: 25m x 10mm diameter Dyneema SK75
- Hook: Competition hook with safety catch, orange
- Fairlead: Aluminium hawse fairlead
- Flow: 50-60 L/min
- Pressure: 10.8Mpa (108 Bar)
- Pressure Hose Connections: 18mm/1.5mm
- Winch Finish: Original Orange powder coated
- Weight (GW): 54kg (103lb)
- Overall Dimensions (LxWxH): 548 x 196 x 249mm
- Mounting Bolt Pattern: 10.00” ± 0.015” x 4.50” ± 0.010” (254 x 114.3mm)
- No Load Line Speed: 6.5m/min (21.3 ft/min)
Compatibility and accessories
This winch is compatible with the full WINCHMAX range of wireless remote controls. It includes a full 24V wired control system, pipes, connectors, and a power in/out big grip wander lead with an extra-long 4.5m cord.Installation
Installation requires the use of hydraulic hose assemblies (1.25m long, x4) fitted with 18x1.5mm threaded fittings and a high tensile fixing bolt kit.Usage
The winch is designed for heavy lifting and recovery tasks, making it suitable for use in various demanding environments, including recovery trucks and agricultural applications.Other information
Industry-leading lifetime warranty on mechanical components & 3 years warranty on electrical.'/%3E%3C/svg%3E)
