General description

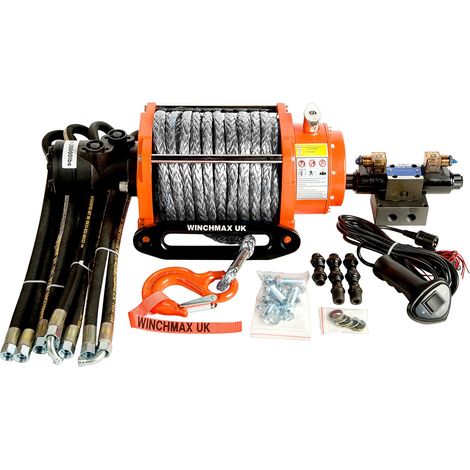

The 20,000lb (9,072kg) Original Orange Hydraulic Winch is designed for heavy-duty applications, making it ideal for recovery trucks, trailers over 7.5T, as well as industrial, commercial, and agricultural use. It features a robust 24V control system and comes equipped with a genuine SK75 Dyneema synthetic rope.Technical specifications
- Single Line Rated Pull: 20,000lb (9,072kg)
- Motor: Hydraulic
- Control: Remote switch, 4.5m lead, in & out
- Gear Train: 3 stage planetary
- Gear Reduction Ratio: 32:1
- Clutch: Sliding ring gear
- Braking Action: Automatic
- Drum Size: Diameter 88mm, Length 222mm
- Drum Finish: Black, painted
- Cable: 25m x 13mm Dyneema SK75 synthetic rope
- Hook: Clevis Hook 1/2 inch, orange
- Fairlead: Aluminium hawse fairlead
- Flow: 50-60 L/min
- Pressure: 10.8Mpa (108 Bar)
- Winch Finish: Original Orange powder coated
- Weight (GW): 55kg (121lb)
- Overall Dimensions (LxWxH): 548 x 196 x 249mm
- Mounting Bolt Pattern: 10.00”±0.015” x 4.50”±0.010” (254 x 114.3mm)
- No Load Line Speed: 6.5m/min (21.3 ft/min)
Compatibility and accessories
- Compatible with the WINCHMAX range of wireless remote controls (see separate listing for details).
- Includes full 24V wired/wireless control system, pipes, and connectors.
- Hydraulic hose assemblies: 1.25m long (x4) fitted with 18 x 1.5mm threaded fittings.
- High tensile fixing bolt kit.
- Clevis Hook 1/2 inch, grade 70 forged with safety catch and hand saver, orange.
Other information
Industry-leading lifetime warranty on mechanical components & 3 years warranty on electrical. VAT invoice provided with every sale.
