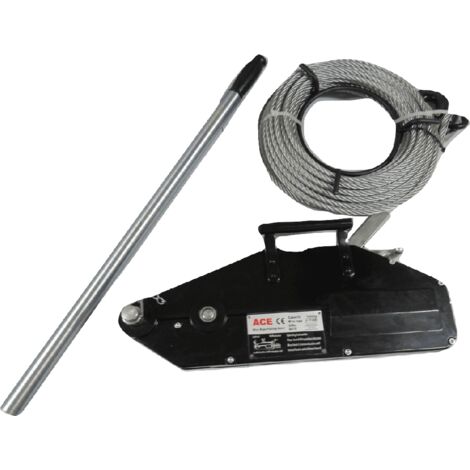

Wire Rope Pulling Hoist Winch 3200KG (ACE 3.2T Lifting 5T Puller with 20M Rope)

Name: Wire Rope Pulling Hoist Winch 3200KG (ACE 3.2T Lifting 5T Puller with 20M Rope)
Brand: SECUREFIX DIRECT
SKU: SFRH32
Price: 294.99 GBP
Availability: InStock
Rating: 4.8 (5 reviews)

Sold by SecureFix Direct

Product information

Description

General description

The Wire Rope Pulling Hoist Winch is a versatile and portable unit designed for pulling, lifting, lowering, and securing loads. With a lifting capacity of 3200KG and a pulling capacity of 5000KG, it is suitable for various applications including construction, oil and chemical industries, mining, agriculture, and even theatrical use due to its black finish that blends into backgrounds.

Technical specifications

Pulling Capacity: 5000KG

Lifting Capacity: 3200KG

Wire Rope Diameter: 16MM

Wire Rope Length: 20 Metres

Machine Dimensions (L x H x W): 660MM x 325MM x 116MM

Closed Handle Length: 692MM

Open Handle Length: 1200MM

Anchor Point Jaw Width: 49MM

Distance Between Anchor Pin & Body: 52MM

Anchor Pin Diameter: 29MM

Wire Rope Hook Opening: 21MM

Max Diameter Pin To Use In Hook: 21MM

Hook Dimensions (W x L): 101MM x 168MM

Other information

Supplied with 20 metres of wire rope and a handle

Wire rope fitted with a hook and safety catch

Overload protection for enhanced safety

Made from an aluminium body with steel inner parts

Supplied with a test certificate

Please note that the color of the hook on the wire rope may differ from the picture

A wide variety of spare parts and lifting tackle available

Conforms to BS EN 13157: 2004 + A1: 2009

Features

Brand
SECUREFIX DIRECT
NF certification
NF116
Warranty
1 year(s)
Colour
Multicolour
Maximum load
3200 kg

Customer reviews

4,8

/ 5 Reviews

Reviews verified by ManoMano

KKenneth

Published on 15/03/2024, United Kingdom

I am a Tree Surgeon and this item is used almost daily, both to influence the direction of the fall of a tree in windy conditions and to help with the removal of stumps, it is great for both jobs. I would recommend this winch.

MMathew

Published on 30/01/2024, United Kingdom

Seems like a good winch will put it to the test soon

NNigel

Published on 13/12/2023, United Kingdom

Great
