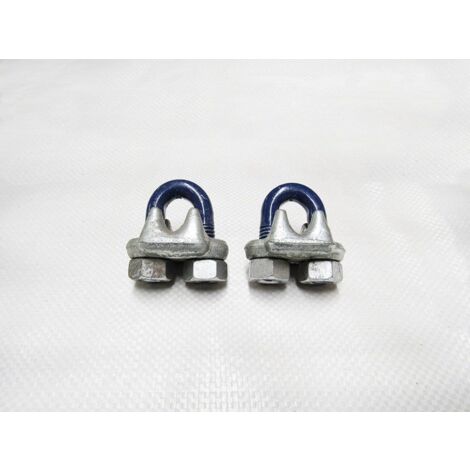

x2, 1 1/4" US FED Spec Wire Rope Grips - 32MM Bulldog Cip U Bolt FF-C-450

Name: x2, 1 1/4" US FED Spec Wire Rope Grips - 32MM Bulldog Cip U Bolt FF-C-450
Brand: SECUREFIX DIRECT
SKU: SFUSG32
Price: 14 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

US FED Spec Wire Rope Grips are designed for use with wire ropes, particularly suitable for applications aboard boats, in public areas, yacht rigging, and more. These grips are essential for creating loops in wire rope, ensuring secure and reliable connections.

Technical specifications

Wire Rope Diameter: 1 1/4" (32MM)

Finish: Galvanised

Quantity: 2

Product Code: SFUSG32

Dimensions:

A (MM): 60.7

B (MM): 41

C (MM): 79.8

D (MM): 22

E (MM): 130.9

F (MM): 51.3

G (MM): 104.6

Installation

Prior to fitting, ensure the threads on the nuts and bolts are well greased.

Maintain a spacing between the grips of at least 6 times the diameter of the rope.

Orient the grip correctly, placing the 'U' bolt on the unloaded end of the rope.

Tighten each nut evenly and in turn to achieve the recommended torque settings.

Leave unused for 24 hours and check the torque setting again, re-tightening if necessary.

After the first application of the load, re-check the torque setting and re-tighten if necessary.

Periodically check the torque setting during service.

Usage

The main use of wire rope grips is to create loops in wire rope, providing a secure connection for various applications.

Features

Brand
SECUREFIX DIRECT
Colour
Multicolour
Warranty
1 year(s)
Product finish
Galvanised
Material
Two-material
ManoMano Reference
ME27138180
MMID
475106786831
Product code
SFUSG32
EAN
600988505216
