1/2

x4, 1/2" US FED Spec Wire Rope Grips - 12MM Bulldog Cip U Bolt FF-C-450

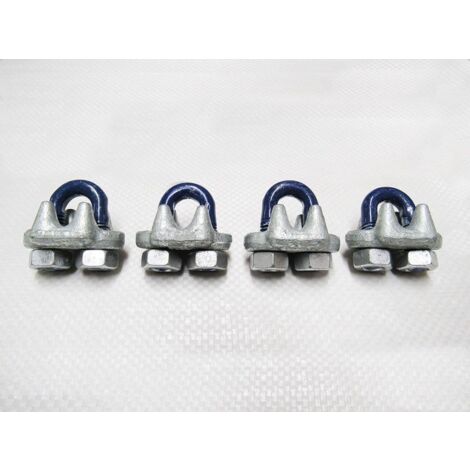

Name: x4, 1/2" US FED Spec Wire Rope Grips - 12MM Bulldog Cip U Bolt FF-C-450
Brand: SECUREFIX DIRECT
SKU: SFUSG12
Price: 10.25 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Our Wire Rope Grips are designed to securely hold wire ropes with a diameter of 1/2" (12MM). These grips are ideal for various applications, including use aboard boats, in public areas, and for yacht rigging. They are perfect for creating loops in wire rope, ensuring a reliable and strong connection.

Technical specifications

Wire Rope Diameter: 1/2" (12MM)

Finish: Galvanised

Quantity: 4

Product Code: SFUSG12

Dimensions:

A (MM): 28.8

B (MM): 19.5

C (MM): 47.2

D (MM): 12

E (MM): 60.3

F (MM): 25.8

G (MM): 58.2

Installation

Prior to fitting, ensure that the threads on the nuts and bolts are well greased.

Maintain a spacing between the grips of at least 6 times the diameter of the rope.

Ensure the grip is oriented correctly, with the 'U' bolt placed on the unloaded end of the rope.

Tighten each nut evenly and in turn to achieve the recommended torque settings.

Leave unused for 24 hours and check the torque setting again, re-tightening if necessary.

After the first application of the load, re-check the torque setting and re-tighten if necessary.

Periodically check the torque setting during service.

Usage

The main use of wire rope grips is to create loops in wire rope, providing a secure and stable connection for various applications.

Features

Brand
SECUREFIX DIRECT
Weight
100 g
Pcs per pack
4
Product finish
Galvanised
Material
Two-material
ManoMano Reference
ME27134430
MMID
909190323054
Product code
SFUSG12
EAN
600988505315
