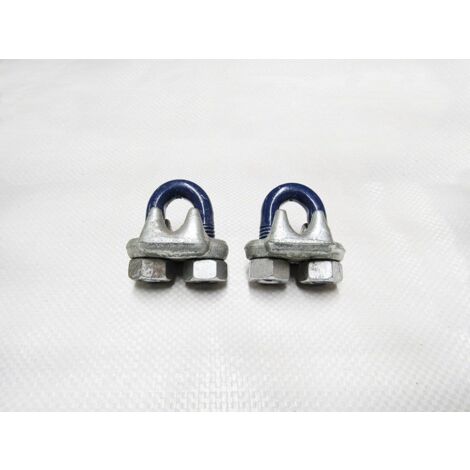

x2, 1 3/8" US FED Spec Wire Rope Grips - 35MM Bulldog Cip U Bolt FF-C-450

Name: x2, 1 3/8" US FED Spec Wire Rope Grips - 35MM Bulldog Cip U Bolt FF-C-450
Brand: SECUREFIX DIRECT
SKU: SFUSG35
Price: 16.85 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

US FED Spec Wire Rope Grips are designed for use with wire ropes, particularly in applications such as boating, public areas, and yacht rigging. These grips are essential for creating loops in wire rope, ensuring secure and reliable connections.

Technical specifications

Wire Rope Diameter: 1 3/8" (35MM)

Finish: Galvanised

Quantity: 2

Product Code: SFUSG35

Dimensions:

A (MM): 64.7

B (MM): 38

C (MM): 79.2

D (MM): 21

E (MM): 140

F (MM): 54.9

G (MM): 105

Installation

Prior to fitting, grease the threads on the nuts and bolts.

Ensure spacing between grips is at least 6 times the diameter of the rope.

Orient the grip correctly, placing the 'U' bolt on the unloaded end of the rope.

Tighten each nut evenly and in turn to achieve the recommended torque settings.

Leave unused for 24 hours and re-check torque settings, re-tightening if necessary.

After the first application of the load, re-check torque settings and re-tighten if necessary.

Periodically check the torque settings during service.

Usage

The main use of wire rope grips is to create loops in wire rope, providing a secure connection for various applications.

Features

Brand
SECUREFIX DIRECT
Colour
Multicolour
Warranty
1 year(s)
Pcs per pack
2
Product finish
Galvanised
Material
Two-material
ManoMano Reference
ME27138267
MMID
652887147219
Product code
SFUSG35
EAN
600988505261
