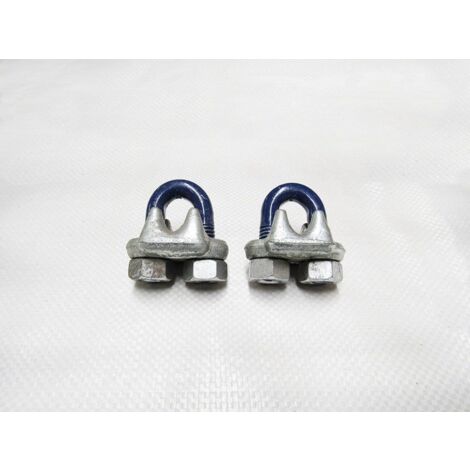

x2, 1 1/8" US FED Spec Wire Rope Grips - 28MM Bulldog Cip U Bolt FF-C-450

Name: x2, 1 1/8" US FED Spec Wire Rope Grips - 28MM Bulldog Cip U Bolt FF-C-450
Brand: SECUREFIX DIRECT
SKU: SFUSG28
Price: 15.5 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

US FED Spec Wire Rope Grips are designed for use with wire ropes, particularly in marine applications such as boats, public areas, and yacht rigging. These grips are essential for creating loops in wire rope, ensuring secure and reliable connections.

Technical specifications

Wire Rope Diameter: 1 1/8" (28MM)

Finish: Galvanised

Quantity: 2

Product Code: SFUSG28

Dimensions:

A (MM): 53.2

B (MM): 34.1

C (MM): 70.5

D (MM): 18

E (MM): 117.1

F (MM): 46.9

G (MM): 90.6

Installation

Prior to fitting, ensure that the threads on the nuts and bolts are well greased.

Maintain a spacing between the grips of at least 6 times the diameter of the rope.

Orient the grip correctly, placing the 'U' bolt on the unloaded end of the rope.

Tighten each nut evenly and in turn to achieve the recommended torque settings.

Leave unused for 24 hours and check the torque setting again, re-tightening if necessary.

After the first application of the load, re-check the torque setting and re-tighten if necessary.

Periodically check the torque setting during service.

Features

Brand
SECUREFIX DIRECT
Material
Steel
Colour
Multicolour
Product finish
Galvanised
Warranty
1 year(s)
