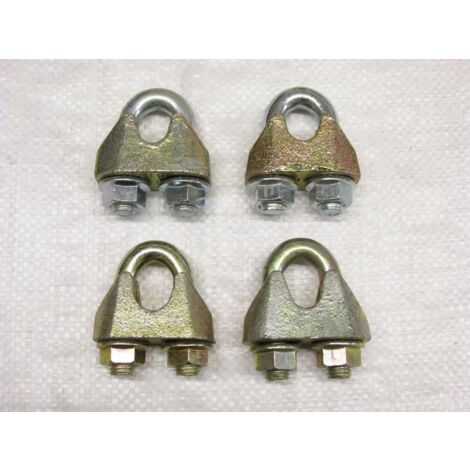

x4 16MM DIN1142 Wire Rope Grips Zinc Plated - Cable Clamp Fixing Bulldog Lifting

Name: x4 16MM DIN1142 Wire Rope Grips Zinc Plated - Cable Clamp Fixing Bulldog Lifting
Brand: SECUREFIX DIRECT
SKU: SFDING13
Price: 9.5 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

These x4 16MM DIN1142 Wire Rope Grips are zinc plated cable clamps designed for secure fixing and lifting applications. They are ideal for use with wire ropes in various settings, including boats, public areas, and yacht rigging. The primary function of these grips is to create loops in wire rope, making them essential for lifting purposes.

Technical specifications

Size: 16MM

Finish: Zinc Plated

Quantity: 4

Product Code: SFDING16

Dimensions:

A (MM): 39

B (MM): 20

C (MM): 32

D (MM): 13.5

E (MM): 77.5

F (MM): 35

G (MM): 63.5

Installation

Ensure installation is performed by a qualified person.

Prior to fitting, grease the threads on the nuts and bolts.

Maintain a spacing of at least 6 times the diameter of the rope between grips.

Orient the grip correctly, placing the 'U' bolt on the unloaded end of the rope.

Tighten each nut evenly and in turn to achieve the recommended torque settings.

Leave unused for 24 hours and check the torque setting again, re-tightening if necessary.

After the first application of the load, re-check the torque setting and re-tighten if necessary.

Periodically check the torque setting during service.

Usage

These wire rope grips are primarily used for lifting applications, providing a secure and reliable method for creating loops in wire rope.

Other information

Finish color may vary.

Features

Brand
SECUREFIX DIRECT
Length
1.6 cm
Width
1.6 cm
Weight
100 g
Material
Zinc
