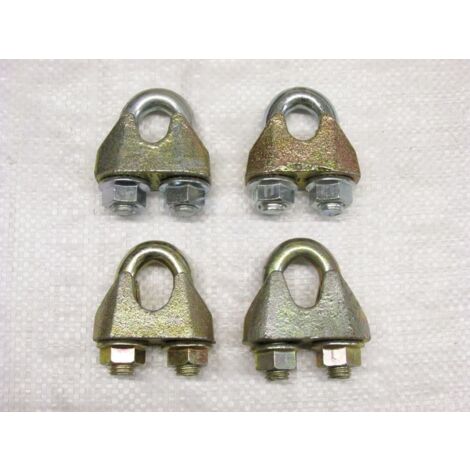

x4 6MM DIN1142 Wire Rope Grips Zinc Plated - Cable Clamp Fixing Bulldog Lifting

Sold by SecureFix Direct

You may also like

Stainless Steel Wire Rope Thimbles 2MM x4 (Marine Webbing Boat Cable Loop)SECUREFIX DIRECT

Stainless Steel Wire Rope Thimbles 2MM x4 (Marine Webbing Boat Cable Loop)

Free delivery
Stainless Steel U Bolt with Plate 60MM 4MM (Nuts Tube Pipe Shaped Heavy Duty)SECUREFIX DIRECT

Stainless Steel U Bolt with Plate 60MM 4MM (Nuts Tube Pipe Shaped Heavy Duty)

Free delivery
5MM Wire Rope Grip x10 - DIN741 Galvanised Commercial Bulldog Clamp Cable ClipSECUREFIX DIRECT

5MM Wire Rope Grip x10 - DIN741 Galvanised Commercial Bulldog Clamp Cable Clip

1
Free delivery
3/8" 0.25 Ton Zinc Plated Dynamo Eyebolt - 250KG 10MM Imperial Eye BoltSECUREFIX DIRECT

3/8" 0.25 Ton Zinc Plated Dynamo Eyebolt - 250KG 10MM Imperial Eye Bolt

Free delivery
M8 Lifting Eye Bolt - Long Shank Dynamo Self Colour Threaded Eyebolt BS4278 0.095 Ton 8MMSECUREFIX DIRECT

M8 Lifting Eye Bolt - Long Shank Dynamo Self Colour Threaded Eyebolt BS4278 0.095 Ton 8MM

Free delivery
M10 Long Shank Eye Bolt Stainless Steel (200MM Metric Thread Rope Cable Marine Grade)SECUREFIX DIRECT

M10 Long Shank Eye Bolt Stainless Steel (200MM Metric Thread Rope Cable Marine Grade)

Free delivery
x10 M6 X 150MM Zinc Plated Folded Straining Eyebolts Nut & Washer - Wire Support Fencing StrainingSECUREFIX DIRECT

x10 M6 X 150MM Zinc Plated Folded Straining Eyebolts Nut & Washer - Wire Support Fencing Straining

2
Free delivery
M12 Lifting Eye Bolt - Zinc Plated Long Shank Dynamo Threaded Eyebolt BS4278 0.32 Ton 12MMSECUREFIX DIRECT

M12 Lifting Eye Bolt - Zinc Plated Long Shank Dynamo Threaded Eyebolt BS4278 0.32 Ton 12MM

Free delivery
M12 Lifting Eye Bolt Long Shank - Self Colour Collared Eyebolt BS4278 400KG 12MMSECUREFIX DIRECT

M12 Lifting Eye Bolt Long Shank - Self Colour Collared Eyebolt BS4278 400KG 12MM

1
Free delivery
x10 M10 X 250MM Zinc Plated Folded Straining Eyebolts Nut & Washer - Wire Support Fencing StrainingSECUREFIX DIRECT

x10 M10 X 250MM Zinc Plated Folded Straining Eyebolts Nut & Washer - Wire Support Fencing Straining

1
Free delivery
M24 Lifting Eye Bolt - Self Coloured Collared Threaded Eyebolt BS4278 2.5 Ton 24MMSECUREFIX DIRECT

M24 Lifting Eye Bolt - Self Coloured Collared Threaded Eyebolt BS4278 2.5 Ton 24MM

1
Free delivery
x10 M10 X 200MM Zinc Plated Folded Straining Eyebolts Nut & Washer - Wire Support Fencing StrainingSECUREFIX DIRECT

x10 M10 X 200MM Zinc Plated Folded Straining Eyebolts Nut & Washer - Wire Support Fencing Straining

1
Free delivery
x10 M10 X 100MM Zinc Plated Folded Straining Eyebolts Nut & Washer - Wire Support Fencing StrainingSECUREFIX DIRECT

x10 M10 X 100MM Zinc Plated Folded Straining Eyebolts Nut & Washer - Wire Support Fencing Straining

1
Free delivery
x2 26MM DIN1142 Wire Rope Grips Zinc Plated - Cable Clamp Fixing Bulldog LiftingSECUREFIX DIRECT

x2 26MM DIN1142 Wire Rope Grips Zinc Plated - Cable Clamp Fixing Bulldog Lifting

Free delivery
32MM Wire Rope Tube Thimbles x2 - Blue PaintedSECUREFIX DIRECT

32MM Wire Rope Tube Thimbles x2 - Blue Painted

1
Free delivery
x1 M8 Galvanised Forged Straining Screw Hook And Hook - Caravan Turnbuckle Open BodySECUREFIX DIRECT

x1 M8 Galvanised Forged Straining Screw Hook And Hook - Caravan Turnbuckle Open Body

1
Free delivery
Makita 199826-6 Guide Rail Clamps Quick Release for SP6000 DSP600 Plunge SawMAKITA
#1 in sales

Makita 199826-6 Guide Rail Clamps Quick Release for SP6000 DSP600 Plunge Saw

33
£58.99
Free delivery
1000pcs Black Cable Ties, Heavy Duty Plastic Cable Ties, Rilsan Nylon Cable Ties, Cable Tie Assortment, 100/150/200/250/300mm Length, 3/4mm WidthLONGZIMING

1000pcs Black Cable Ties, Heavy Duty Plastic Cable Ties, Rilsan Nylon Cable Ties, Cable Tie Assortment, 100/150/200/250/300mm Length, 3/4mm Width

4
£37.71
Free delivery
Cable connector 20x connectors for boundary wire, repair kit for robotic lawnmower cables, cable clamp, for connecting cable ends, resin-filled cable connectors for Automower robotic lawnmowersMEMKEY

Cable connector 20x connectors for boundary wire, repair kit for robotic lawnmower cables, cable clamp, for connecting cable ends, resin-filled cable connectors for Automower robotic lawnmowers

2
Free delivery
100 Pack Adhesive Cable Tie Mounts, Multipurpose Universal Cable Tie Base Mounts, Black (Length 150mm, Width 2cm, Black)BEIJIYI

100 Pack Adhesive Cable Tie Mounts, Multipurpose Universal Cable Tie Base Mounts, Black (Length 150mm, Width 2cm, Black)

2
Free delivery

Compare with similar items

Product information

Description

General description

Our Wire Rope Grips are designed for use with 6MM wire rope, making them ideal for applications such as boat rigging, public areas, and various lifting purposes. The grips are zinc plated, providing excellent corrosion resistance and durability.

Technical specifications

  • Size: 6MM
  • Finish: Zinc Plated
  • Quantity: 4
  • Product Code: SFDING06
  • Dimensions:
  • A: 17 MM
  • B: 8 MM
  • C: 16 MM
  • D: 6 MM
  • E: 33 MM
  • F: 14 MM
  • G: 30 MM

    • Installation

  • Ensure installation is performed by a qualified person.
  • Prior to fitting, grease the threads on the nuts and bolts.
  • Maintain a spacing between grips of at least 6 times the diameter of the rope.
  • Orient the grip correctly, placing the 'U' bolt on the unloaded end of the rope.
  • Tighten each nut evenly and in turn to achieve the recommended torque settings.
  • Leave unused for 24 hours and check the torque setting again, re-tightening if necessary.
  • After the first application of the load, re-check the torque setting and re-tighten if necessary.
  • Periodically check the torque setting during service.

    • Usage

    The main use of wire rope grips is to create loops in wire rope, which can be utilized for various lifting applications.

    Other information

    Finish color may vary.

    Features

    • Brand
      SECUREFIX DIRECT
    • Weight
      100 g
    • Material
      Metal
    • Product finish
      Zinc-plated
    • Certification body
      DIN
