x4 22MM DIN1142 Wire Rope Grips Zinc Plated - Cable Clamp Fixing Bulldog Lifting

Name: x4 22MM DIN1142 Wire Rope Grips Zinc Plated - Cable Clamp Fixing Bulldog Lifting
Brand: SECUREFIX DIRECT
SKU: SFDING19
Price: 12 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

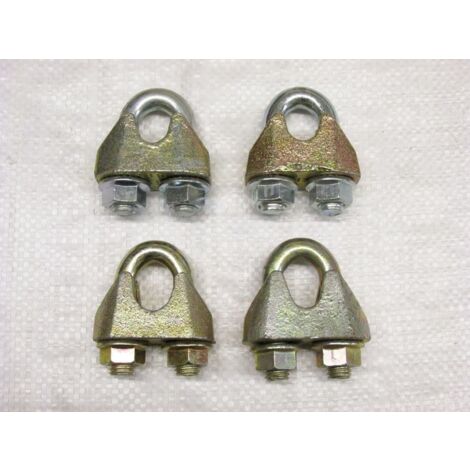

These x4 22MM DIN1142 Wire Rope Grips are zinc plated cable clamps designed for secure fixing and lifting applications. They are suitable for use with 22MM wire rope and are ideal for various settings, including boats, public areas, and yacht rigging. The primary function of these wire rope grips is to create loops in wire rope for lifting purposes.

Technical specifications

Size: 22MM

Finish: Zinc Plated

Quantity: 4

Product Code: SFDING22

Dimensions:

A: 41MM

B: 24MM

C: 35MM

D: 16MM

E: 97MM

F: 45MM

G: 75MM

Installation

Ensure installation is performed by a qualified person.

Prior to fitting, grease the threads on the nuts and bolts.

Maintain a spacing of at least 6 times the diameter of the rope between grips.

Orient the grip correctly, placing the 'U' bolt on the unloaded end of the rope.

Tighten each nut evenly and in turn to achieve the recommended torque settings.

Leave unused for 24 hours and check torque settings again, re-tightening if necessary.

After the first application of the load, re-check torque settings and re-tighten if necessary.

Periodically check the torque settings during service.

Usage

These wire rope grips are primarily used for lifting applications, providing a secure and reliable method for creating loops in wire rope.

Other information

Finish color may vary.

Note: A wide variety of D.I.Y hardware and equipment is available.

Features

Brand
SECUREFIX DIRECT
Colour
Multicolour
NF certification
NF126
Warranty
1 year(s)
Certification body
DIN
Pcs per pack
1
Width
2.2 cm
Material
Zinc
Weight
100 g
ManoMano Reference
ME27136199
MMID
593972935136
Product code
SFDING19
EAN
600988491427
