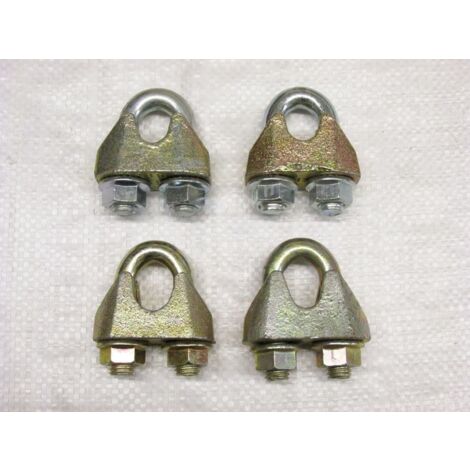

x4 19MM DIN1142 Wire Rope Grips Zinc Plated - Cable Clamp Fixing Bulldog Lifting

Name: x4 19MM DIN1142 Wire Rope Grips Zinc Plated - Cable Clamp Fixing Bulldog Lifting
Brand: SECUREFIX DIRECT
SKU: SFDING16
Price: 11.5 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

These x4 19MM DIN1142 Wire Rope Grips are zinc plated cable clamps designed for secure fixing and lifting applications. They are suitable for use with 19MM wire rope and are ideal for various settings, including boats, public areas, and yacht rigging. The primary function of these grips is to create loops in wire rope for lifting purposes.

Technical specifications

Size: 19MM

Finish: Zinc Plated

Quantity: 4

Product Code: SFDING19

Dimensions:

A (MM): 44

B (MM): 23

C (MM): 32

D (MM): 14

E (MM): 83

F (MM): 40

G (MM): 67

Installation

Ensure installation is performed by a qualified person.

Prior to fitting, grease the threads on the nuts and bolts.

Maintain a spacing of at least 6 times the diameter of the rope between grips.

Orient the grip correctly, with the 'U' bolt on the unloaded end of the rope.

Tighten each nut evenly and in turn to achieve the recommended torque settings.

Leave unused for 24 hours and check torque settings again, re-tightening if necessary.

After the first application of load, re-check torque settings and re-tighten if necessary.

Periodically check the torque settings during service.

Usage

These wire rope grips are primarily used for lifting applications, providing a secure and reliable method for creating loops in wire rope.

Other information

Finish color may vary.

Features

Brand
SECUREFIX DIRECT
Length
1.9 cm
Width
1.9 cm
Weight
100 g
Material
Zinc
