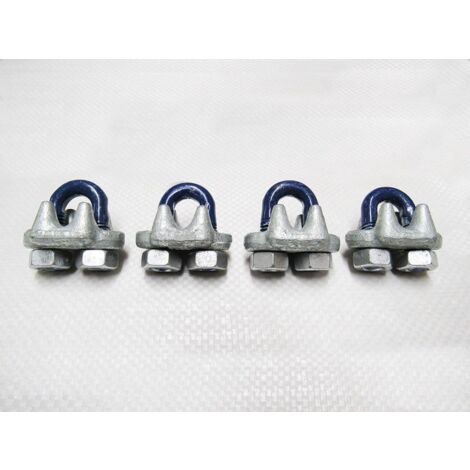

x4, 3/4" US FED Spec Wire Rope Grips - 20MM Bulldog Cip U Bolt FF-C-450

Name: x4, 3/4" US FED Spec Wire Rope Grips - 20MM Bulldog Cip U Bolt FF-C-450
Brand: SECUREFIX DIRECT
SKU: SFUSG20
Price: 12.5 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Our Wire Rope Grips are designed to securely hold wire ropes with a diameter of 3/4" (20MM). These grips are ideal for various applications including use aboard boats, in public areas, and for yacht rigging. They are perfect for creating loops in wire rope, ensuring a reliable and strong connection.

Technical specifications

Wire Rope Diameter: 3/4" (20MM)

Finish: Galvanised

Quantity: 4

Product Codes and Dimensions:

SFUSG03: A=13MM, B=6.9MM, C=21.7MM, D=6MM, E=24.4MM, F=12.6MM, G=25.6MM

SFUSG05: A=16MM, B=7.9MM, C=25MM, D=6MM, E=30.1MM, F=14.5MM, G=28.6MM

SFUSG06: A=18.6MM, B=10.5MM, C=30.1MM, D=8MM, E=36.1MM, F=16.6MM, G=37.8MM

SFUSG08: A=24.8MM, B=13.6MM, C=33.3MM, D=9MM, E=48.3MM, F=17.9MM, G=43MM

SFUSG10: A=25.5MM, B=14.4MM, C=40.3MM, D=11MM, E=51.6MM, F=22.1MM, G=49.1MM

SFUSG12: A=28.8MM, B=19.5MM, C=47.2MM, D=12MM, E=60.3MM, F=25.8MM, G=58.2MM

SFUSG16: A=39MM, B=22.1MM, C=50.8MM, D=14MM, E=72.2MM, F=33.9MM, G=63.2MM

SFUSG20: A=45MM, B=27MM, C=56.2MM, D=15MM, E=90.7MM, F=32.8MM, G=72.3MM

SFUSG22: A=44MM, B=26.5MM, C=62.1MM, D=18MM, E=96.7MM, F=40.6MM, G=80MM

SFUSG28: A=53.2MM, B=34.1MM, C=70.5MM, D=18MM, E=117.1MM, F=46.9MM, G=90.6MM

SFUSG32: A=60.7MM, B=41MM, C=79.8MM, D=22MM, E=130.9MM, F=51.3MM, G=104.6MM

SFUSG35: A=64.7MM, B=38MM, C=79.2MM, D=21MM, E=140MM, F=54.9MM, G=105MM

SFUSG44: A=73.1MM, B=52.7MM, C=95.4MM, D=27MM, E=175MM, F=72.1MM, G=133.8MM

SFUSG64: A=91MM, B=69MM, C=107.3MM, D=31MM, E=235MM, F=98.1MM, G=166MM

SFUSG76: A=100MM, B=86.6MM, C=149.4MM, D=37.3MM, E=275MM, F=122.5MM, G=195MM

Installation

Prior to fitting, ensure the threads on the nuts and bolts are well greased.

Maintain a spacing between the grips of at least 6 times the diameter of the rope.

Orient the grip correctly, placing the 'U' bolt on the unloaded end of the rope.

Tighten each nut evenly and in turn to achieve the recommended torque settings.

Leave unused for 24 hours and check the torque setting again, re-tightening if necessary.

After the first application of the load, re-check the torque setting and re-tighten if necessary.

Periodically check the torque setting during service.

Usage

The main use of wire rope grips is to create loops in wire rope, providing a secure and reliable connection for various applications.

Features

Brand
SECUREFIX DIRECT
Weight
100 g
Pcs per pack
4
Product finish
Galvanised
Material
Two-material
ManoMano Reference
ME27137294
MMID
374926590425
Product code
SFUSG20
EAN
600988505360
