x4 10MM DIN1142 Wire Rope Grips Zinc Plated - Cable Clamp Fixing Bulldog Lifting

Name: x4 10MM DIN1142 Wire Rope Grips Zinc Plated - Cable Clamp Fixing Bulldog Lifting
Brand: SECUREFIX DIRECT
SKU: SFDING08
Price: 7.5 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

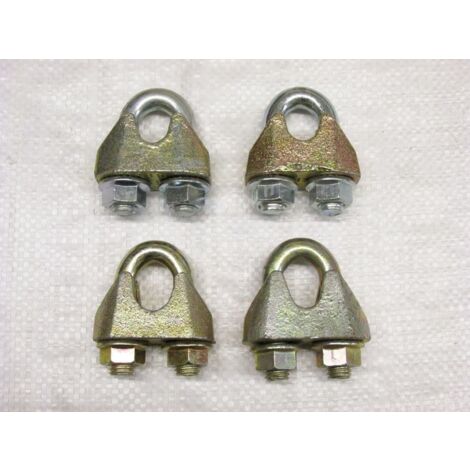

These x4 10MM DIN1142 Wire Rope Grips are zinc plated cable clamps designed for securing wire ropes. They are ideal for various applications including boat rigging, public areas, and lifting purposes. The grips create loops in wire rope, ensuring a reliable connection.

Technical specifications

Size: 10MM

Finish: Zinc Plated

Quantity: 4

Product Code: SFDING10

Dimensions:

A (MM): 21

B (MM): 12

C (MM): 21

D (MM): 8

E (MM): 43.5

F (MM): 20.5

G (MM): 38.5

Installation

Ensure installation is performed by a qualified person.

Prior to fitting, grease the threads on the nuts and bolts.

Maintain a spacing of at least 6 times the diameter of the rope between grips.

Orient the grip correctly, placing the 'U' bolt on the unloaded end of the rope.

Tighten each nut evenly and in turn to achieve the recommended torque settings.

Leave unused for 24 hours and check torque settings again, re-tightening if necessary.

After the first application of load, re-check torque settings and re-tighten if necessary.

Periodically check the torque settings during service.

Usage

These wire rope grips are primarily used for lifting and securing wire ropes in various applications, ensuring a strong and reliable connection.

Other information

Finish color may vary.

Features

Brand
SECUREFIX DIRECT
Length
1 cm
Width
1 cm
Weight
100 g
Material
Zinc
