General description

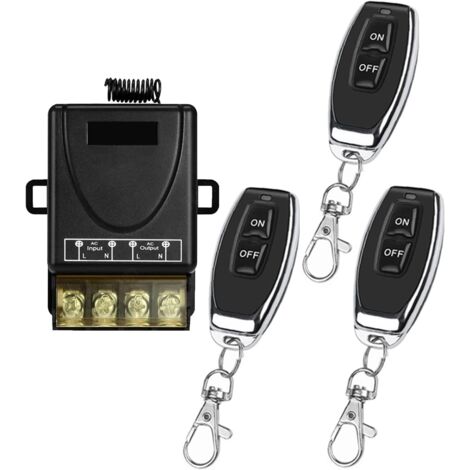

The 433MHz Wireless Remote Control Switch is designed for controlling various household appliances, including lights, water pumps, and agricultural irrigation systems. It operates on a stable and reliable 433MHz RF signal, allowing for remote control from a distance of up to 164 feet without obstruction. The system features a 30A relay, making it suitable for high-power electrical devices.Technical specifications
- Voltage: AC 85V ~ 265V
- Max current: 30A
- RF frequency: 433MHz
- Support encoding: 1527 learning code
- Sensitivity reception: > 97dBm
- RF working mode: ASK superhetodyne wireless reception
- Working temperature: -30°C to +80°C
- Receiving range: More than 50 meters in open space
- Standing current: < 5mA
Installation
- Press the learning button on the receiver three times and wait for 3 seconds.
- Press the “ON” button on the remote control and wait for 3 seconds.
- Press the “OFF” button on the remote control to complete the setup.
Usage
The remote control switch features three operating modes: momentary, toggle, and latched mode. Users can easily switch between these modes according to their needs. The "ON" button activates the relay, while the "OFF" button deactivates it.Other information
