433Mhz Wireless Remote Control Switch AC 220V 230V 30A Relay Receiver and 2 Transmitter Radio Control for Light Water Pump Household Appliances Agricultural Irrigation

Product information

Description

General description

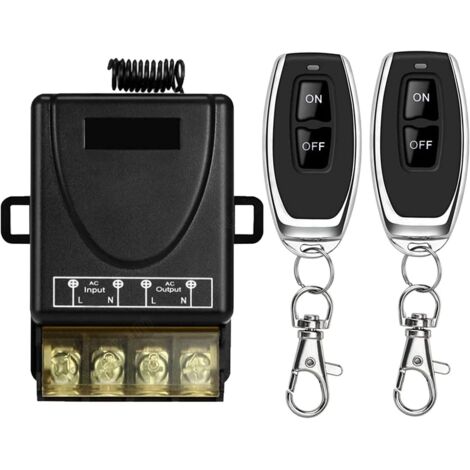

The 433MHz Wireless Remote Control Switch is designed for controlling various household appliances, including lights, water pumps, and security systems. It operates on a reliable 433MHz RF frequency, allowing for a strong signal that can penetrate walls, floors, and doors, with a maximum range of up to 164 feet in unobstructed conditions. This switch is equipped with a 30A relay, making it suitable for high-power electrical devices.

Technical specifications

Voltage: AC 85V ~ 265V
Max current: 30A
RF frequency: 433MHz
Support encoding: 1527 learning code
Sensitivity reception: > 97dBm
RF working mode: ASK superhetodyne wireless reception
Working temperature: -30°C to +80°C
Receiving range: More than 50 meters in open space
Standing current: < 5mA

Installation

Press the learning button on the receiver three times and wait for 3 seconds.
Press the “ON” button on the remote control and wait for 3 seconds.
Press the “OFF” button on the remote control to complete the setup.

Usage

The remote control switch features three operating modes: momentary, toggle, and latched mode. Users can easily configure the switch according to their needs, using the "ON" button to activate and the "OFF" button to deactivate connected devices.
