General description

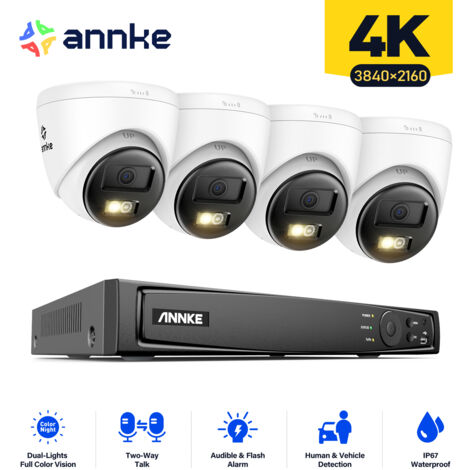

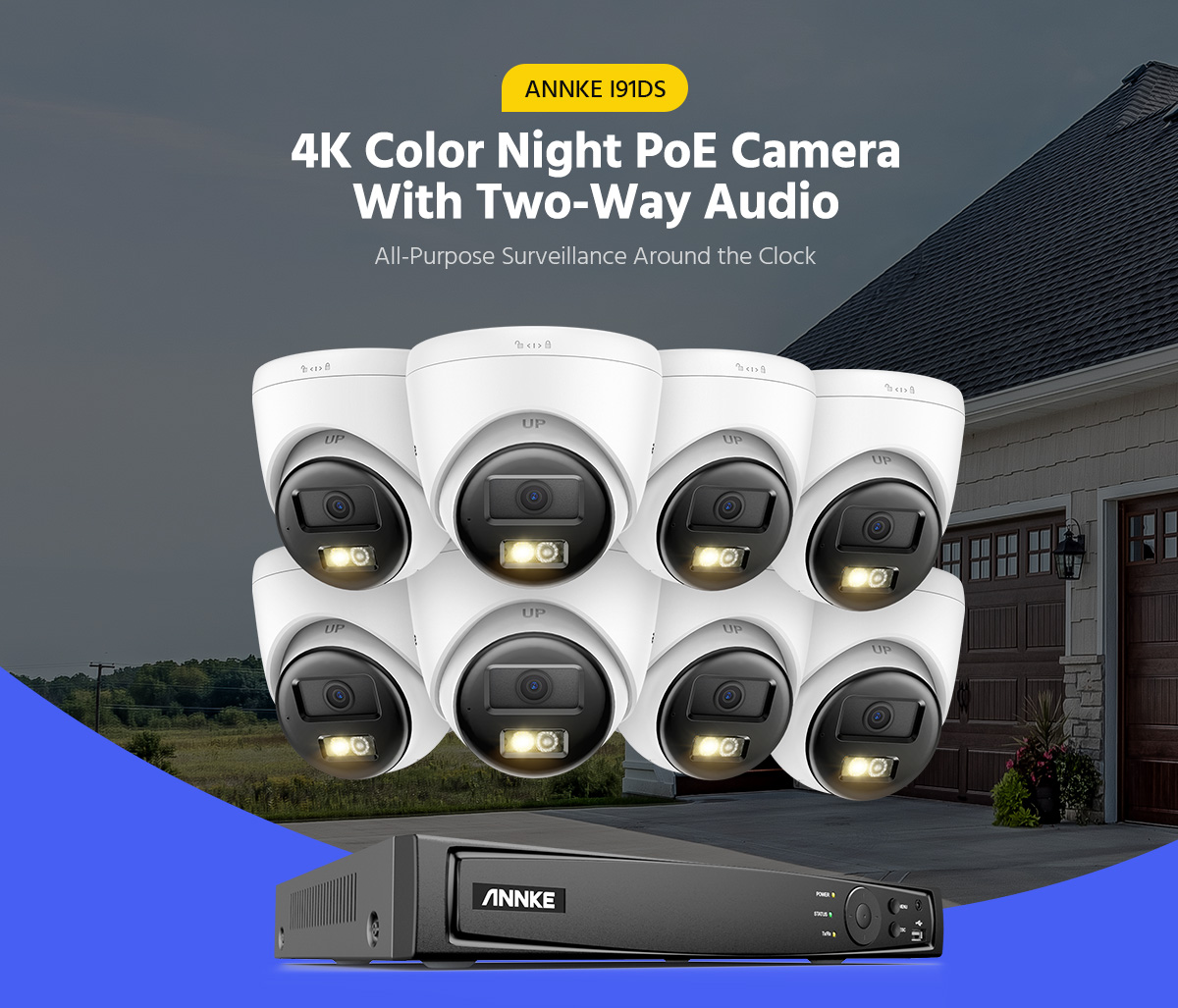

The ANNKE 4K Outdoor Video Surveillance Kit includes an 8-channel NVR and four smart dual-light cameras, designed for comprehensive home security. This kit features advanced night vision capabilities, two-way audio, and remote access, ensuring you can monitor your property anytime, anywhere.Technical specifications
- Camera Sensor: 1/2.4" Progressive Scan CMOS
- Max Resolution: 3840 × 2160 (8MP)
- Video Compression: H.265+/H.265/H.264+/H.264
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Lens: 4 mm
- Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Angle of View: Horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
- Operating Temperature: -22 °F to 140 °F (-30 °C to 60 °C)
- Dimensions (Camera): Ø 110 mm × 102.7 mm (Ø 4.33" × 4.04")
- Weight (Camera): Approx. 340 g (0.7 lb)
- NVR Max Recording Resolution: Up to 12MP (4096 × 3072) @ 30fps
- NVR Dimensions: 315 mm × 240 mm × 48 mm (12.4” × 9.4” × 1.9”)
- NVR Weight: 2.2 lbs (1 kg) without hard disk
Compatibility and accessories
- Supports up to 8 IP cameras with PoE connections
- Compatible with third-party network cameras
- Storage: Built-in microSD/SDHC/SDXC slot, up to 512 GB
- Hard Drive Capacity: Up to 8 TB
Installation
- Easy installation with PoE (Power over Ethernet) support
- Includes 8-channel NVR for seamless camera integration
Usage
- Remote access via mobile devices (iPhone, iPad, Android)
- Two-way audio for real-time communication
- Smart motion detection for humans and vehicles
- Flashing light and audio alarms for enhanced security
