General description

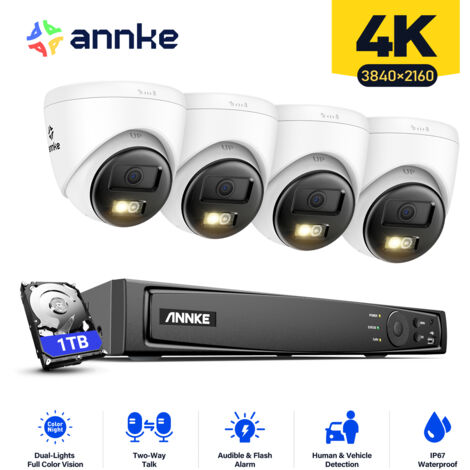

ANNKE 4K Outdoor Video Surveillance Kit includes an 8-channel NVR and four smart dual light cameras, designed for comprehensive home security. This kit features advanced night vision, two-way audio, and remote access capabilities, ensuring you can monitor your property anytime, anywhere.Technical specifications
- NVR: Supports up to 8 IP cameras with PoE inputs
- Max resolution: 12 MP (4096 x 3072)
- Video output: HDMI up to 4K (3840 x 2160), VGA up to 1080p
- Video compression: H.265+/H.265/H.264+
- Audio input/output: 1 RCA each
- Max recording resolution: Up to 12 MP at 30 fps
- Operating power: DC 48 V
- Dimensions (NVR): 315 x 240 x 48 mm (12.4” x 9.4” x 1.9”)
- Weight (NVR): 1 kg (2.2 lbs)
- Camera: 4 mm lens, 1/2.4" Progressive Scan CMOS sensor
- Min illumination: Color: 0.005 Lux, B/W: 0 Lux with IR
- Angle of view: Horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
- Operating temperature: -30 °C to 60 °C (-22 °F to 140 °F)
- Weight (camera): Approx. 340 g (0.7 lb)
- Dimensions (camera): Ø 110 mm x 102.7 mm (Ø 4.33" x 4.04")
Compatibility and accessories
- Compatible with third-party IP cameras
- Supports microSD/SDHC/SDXC cards up to 512 GB
- HDD capacity: Up to 8 TB
Installation
- Easy installation with PoE support
- Includes necessary mounting hardware
Usage
- Remote access via mobile devices (iPhone, iPad, Android)
- Two-way audio for real-time communication
- Smart motion detection for humans and vehicles
- Adjustable audio recording settings
