General description

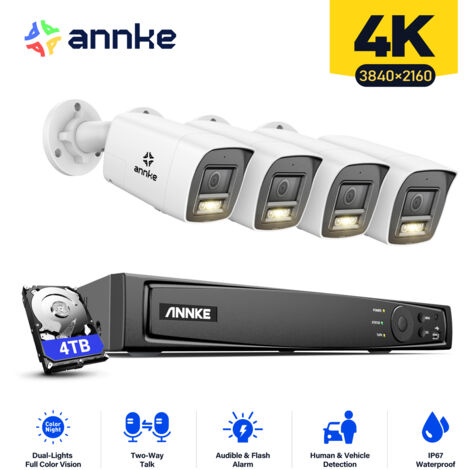

The ANNKE 4K Outdoor Video Surveillance Kit includes an 8-channel NVR and four smart cameras designed for comprehensive security monitoring. This kit features advanced night vision capabilities, motion detection, and two-way audio communication, making it ideal for both residential and commercial use.Technical specifications
- Camera Sensor: 1/2.4" Progressive Scan CMOS
- Max Resolution: 3840 × 2160 (8MP)
- Video Compression: H.265+/H.265/H.264+/H.264
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Lens: 4 mm
- Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Angle of View: Horizontal FOV 78°, Vertical FOV 38°, Diagonal FOV 96°
- Operating Temperature: -22 °F to 140 °F (-30 °C to 60 °C)
- Dimensions (L x W x H): 179 mm × 67.4 mm × 69.1 mm (7.1" × 2.7" × 2.7")
- Weight: 0.6 lb (285 g)
- NVR Max Recording Resolution: Up to 12MP (4096 × 3072) @ 30fps
- NVR Dimensions: 315 mm × 240 mm × 48 mm (12.4” × 9.4” × 1.9”)
- NVR Weight: 2.2 lbs (1 kg)
Compatibility and accessories
- Supports up to 8 IP cameras with PoE connections
- Compatible with third-party network cameras
- Storage: Built-in microSD/SDHC/SDXC Slot, up to 512 GB
- HDD Capacity: Up to 8 TB
Installation
- Easy installation with PoE support for camera connections
- Includes 1 RJ45 10/100 M self-adaptive Ethernet port for NVR
Usage
- Remote monitoring via mobile devices (iPhone, iPad, Android)
- Two-way audio communication for real-time interaction
- Advanced motion detection with human and vehicle recognition
Other information
