General description

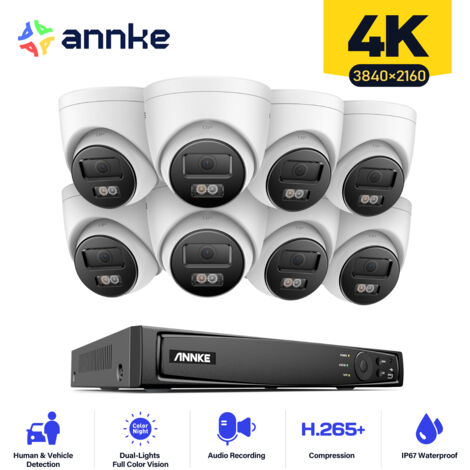

This ANNKE 8CH CCTV Kit includes a 4K NVR and 8×8MP cameras, providing a comprehensive security solution for your home or business. The system features advanced motion detection, remote access capabilities, and high-resolution video recording, ensuring you never miss an important moment.Technical specifications
- Max Recording Resolution: Up to 12MP (4096 X 3072)@30fps
- Max Playback Resolution: Up to 12MP (4096 X 3072)@30fps
- Video Output: HDMI up to 4K (4096 × 2160), VGA up to 1080p (1920 × 1080)
- Operating Power: DC 48 V
- Power Consumption: ≤10 W (Without HDD and PoE)
- Working Temperature: 14 °F ~ 131 °F / -10 °C ~ +55 °C
- Dimensions (W X H X D): 12.4” X 9.4” X 1.9” / 315 X 240 X 48 mm
- Weight (Without Hard Disk): 2.2 lbs / 1 kg
- Camera Max Resolution: 3840*2160 (8MP)
- Camera Lens: 4 mm
- Camera Weight: 0.7 lb / 340 g
- Camera Dimensions: Ø110 mm × 89.2 mm (Ø4.3" × 3.5")
Compatibility and accessories
- Compatible with up to 8 ANNKE IP cameras and other ONVIF cameras
- Supports on-board storage up to 512 GB (SD card slot)
- 1 SATA Interface for HDD, up to 8 TB Capacity
Installation
- Easy installation with built-in PoE inputs for connecting IP cameras
- Supports remote access via iPhone, iPad, and Android devices
Usage
- Live view and playback of recorded footage in high resolution
- Receive instant alerts for motion events via app pushes and email notifications
- Customize motion detection areas and privacy masks to enhance security
