General description

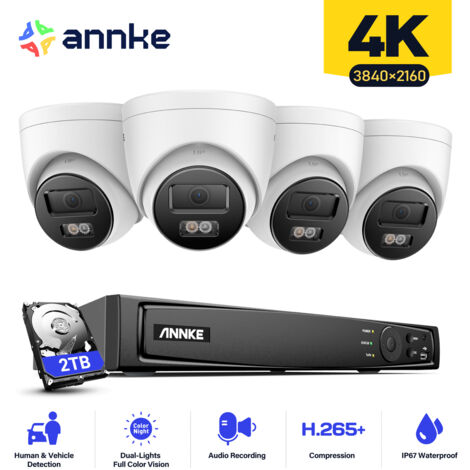

The ANNKE 8CH CCTV Kit is a comprehensive security surveillance system featuring an NVR and four 8MP smart dual light turret cameras. This system supports advanced motion detection and remote access, ensuring high-quality monitoring and recording capabilities for both residential and commercial properties.Technical specifications
- Max Recording Resolution: Up to 12MP (4096 x 3072) @ 30fps
- Max Playback Resolution: Up to 12MP (4096 x 3072) @ 30fps
- Video Output: HDMI up to 4K (4096 x 2160), VGA up to 1080p (1920 x 1080)
- Operating Power: DC 48 V
- Power Consumption: ≤10 W (Without HDD and PoE)
- Working Temperature: 14 °F ~ 131 °F (-10 °C ~ +55 °C)
- NVR Dimensions: 12.4” x 9.4” x 1.9” (315 x 240 x 48 mm)
- NVR Weight: 2.2 lbs (1 kg)
- Camera Max Resolution: 3840 x 2160 (8MP)
- Camera Lens: 4 mm
- Camera Dimensions: Ø110 mm x 89.2 mm (Ø4.3" x 3.5")
- Camera Weight: 0.7 lb (340 g)
Compatibility and accessories
- Compatible with up to 8 ANNKE IP cameras and other ONVIF cameras
- Supports on-board storage up to 512 GB (SD card slot)
- Expandable with additional cameras
Installation
- Easy installation with built-in PoE inputs for camera connectivity
- Includes 1 SATA interface for HDD (up to 8 TB capacity)
Usage
- Live view, recording, and playback capabilities up to 12 MP resolution
- Remote monitoring via iPhone, iPad, and Android devices
- Smart motion detection with customizable motion areas and privacy masks
- Instant alerts via app pushes and email notifications for motion events
