General description

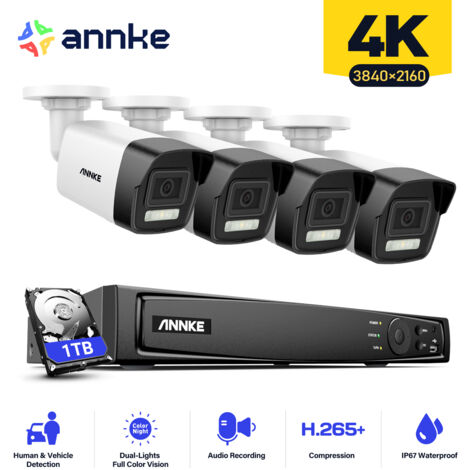

The ANNKE 8CH CCTV Kit includes an NVR and four 8MP smart dual light network cameras, providing comprehensive security surveillance for your home or business. With advanced features such as motion detection, remote access, and high-resolution recording, this system ensures you never miss a moment. The NVR supports up to 8 channels and is compatible with various ONVIF cameras, making it a versatile choice for your security needs.Technical specifications
- Max Recording Resolution: Up to 12MP (4096 x 3072) @ 30fps
- Max Playback Resolution: Up to 12MP (4096 x 3072) @ 30fps
- Video Output: HDMI up to 4K (4096 × 2160), VGA up to 1080p (1920 × 1080)
- Incoming/Outgoing Bandwidth: 80/80 Mbps
- HDD Capacity: Up to 8 TB
- Operating Power: DC 48 V
- Power Consumption: ≤10 W (Without HDD and PoE)
- Working Temperature: 14 °F ~ 131 °F (-10 °C ~ +55 °C)
- Dimensions (W X H X D): 12.4” X 9.4” X 1.9” (315 X 240 X 48 mm)
- Weight (Without Hard Disk): 2.2 lbs (1 kg)
- Camera Image Sensor: 1/2.4" Progressive Scan CMOS
- Camera Max Resolution: 3840*2160 (8MP)
- Camera Lens: 4 mm
- Camera Minimum Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Camera Dimensions: 170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")
- Camera Weight: 0.6 lb (285 g)
Compatibility and accessories
- Compatible with up to 8 ANNKE IP cameras and other ONVIF cameras
- Supports on-board storage up to 512 GB (SD card slot)
Installation
- Easy installation with built-in PoE inputs for camera connectivity
- Includes 1 SATA interface for HDD installation
Usage
- Live view, recording, and playback up to 12 MP resolution
- Remote monitoring via iPhone, iPad, and Android devices
- Smart motion detection alerts with customizable motion areas
