General description

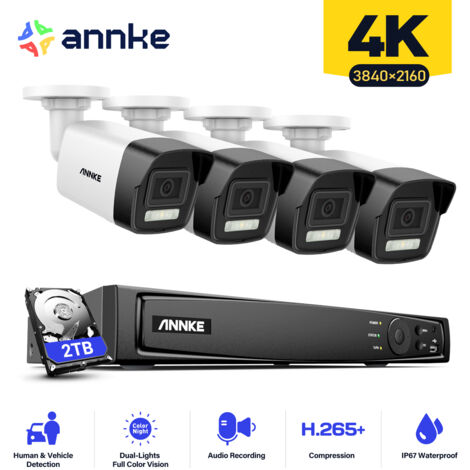

The ANNKE 8CH CCTV Kit includes an NVR and four 8MP smart dual light network cameras, providing comprehensive security surveillance. The system supports remote access and features advanced motion detection capabilities, ensuring reliable monitoring day and night.Technical specifications
- Max Recording Resolution: Up to 12MP (4096 x 3072) @ 30fps
- Max Playback Resolution: Up to 12MP (4096 x 3072) @ 30fps
- Video Output: HDMI up to 4K (4096 x 2160), VGA up to 1080p (1920 x 1080)
- Operating Power: DC 48 V
- Power Consumption: ≤10 W (Without HDD and PoE)
- Working Temperature: 14 °F ~ 131 °F (-10 °C ~ +55 °C)
- NVR Dimensions: 12.4” x 9.4” x 1.9” (315 x 240 x 48 mm)
- NVR Weight: 2.2 lbs (1 kg)
- Camera Max Resolution: 3840 x 2160 (8MP)
- Camera Lens: 4 mm
- Camera Dimensions: 170.8 mm x 66 mm x 69.1 mm (6.7" x 2.6" x 2.7")
- Camera Weight: 0.6 lb (285 g)
Compatibility and accessories
- Compatible with up to 8 ANNKE IP cameras and other ONVIF cameras
- Supports on-board storage up to 512 GB (SD card slot)
- HDD Capacity: Up to 8 TB
Installation
- Easy installation with built-in PoE inputs for connecting IP cameras
- Includes 1 SATA interface for HDD installation
Usage
- Live view, recording, and playback up to 12 MP resolution
- Receive instant alerts via app and email for motion detection events
- Customize motion detection areas and privacy masks
