General description

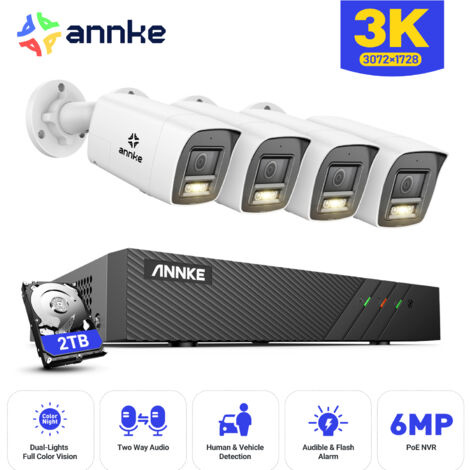

ANNKE Outdoor Video Surveillance Kit includes 4×5MP IP cameras equipped with advanced features such as 2-way audio, motion detection, and color night vision. This comprehensive surveillance solution allows for remote monitoring via mobile apps and PC, ensuring your property is secure at all times.Technical specifications
- Camera Sensor: 1/3" Progressive Scan CMOS
- Max Resolution: 3K (3072*1728), 16:9 aspect ratio
- Main Stream: 50 Hz: 20 fps (3072*1728), 25 fps (1920 X 1080, 1280 X 720); 60 Hz: 20 fps (3072*1728), 24 fps (1920 X 1080, 1280 X 720)
- Substream: 50 Hz: 25 fps (1280 X 720, 640 X 480, 640 X 360); 60 Hz: 24 fps (1280 X 720, 640 X 480, 640 X 360)
- Video Compression: H.265+/H.265/H.264+/H.264
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Lens: 2.8 mm
- Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Angle of View: Horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°
- Supplement Light Range: IR: up to 30 m, White Light: up to 30 m
- Operating Power: DC 12 V± 25%, max. 7.5 W; PoE (802.3af), max. 9 W
- Operating Temperature: -22 °F to 140 °F (-30 °C to 60 °C)
- Dimensions: 179 mm × 67.4 mm × 69.1 mm (7.1" × 2.7" × 2.7")
- Weight: Approx. 315 g (0.7 lb.)
Compatibility and accessories
- Supports up to 8 IP cameras with integrated PoE inputs
- Storage: Built-in microSD/SDHC/SDXC Slot, up to 512 GB
- Compatible with mobile devices (iPhone, iPad, Android) for remote monitoring
Installation
- Easy installation with PoE support
- Metal and plastic housing suitable for indoor and outdoor use
Usage
- Real-time security monitoring with 2-way audio
- Smart Dual-Light technology for enhanced night vision
- Motion detection with human and vehicle recognition to reduce false alerts
