Silent Bearing Puller Kit for BMW vidaXL

It is a professional tool for commercial or DIY use. The kit is ideal assistance for you to remove and install ball joints, bushes and bearings for numerous BMW models from 1 Series to 8 Series.

This silent bearings tool set is designed for long life in daily workshop use and categorized into industrial grade. All tools are sorted it in in a blow molded case for easy storage and transportation.

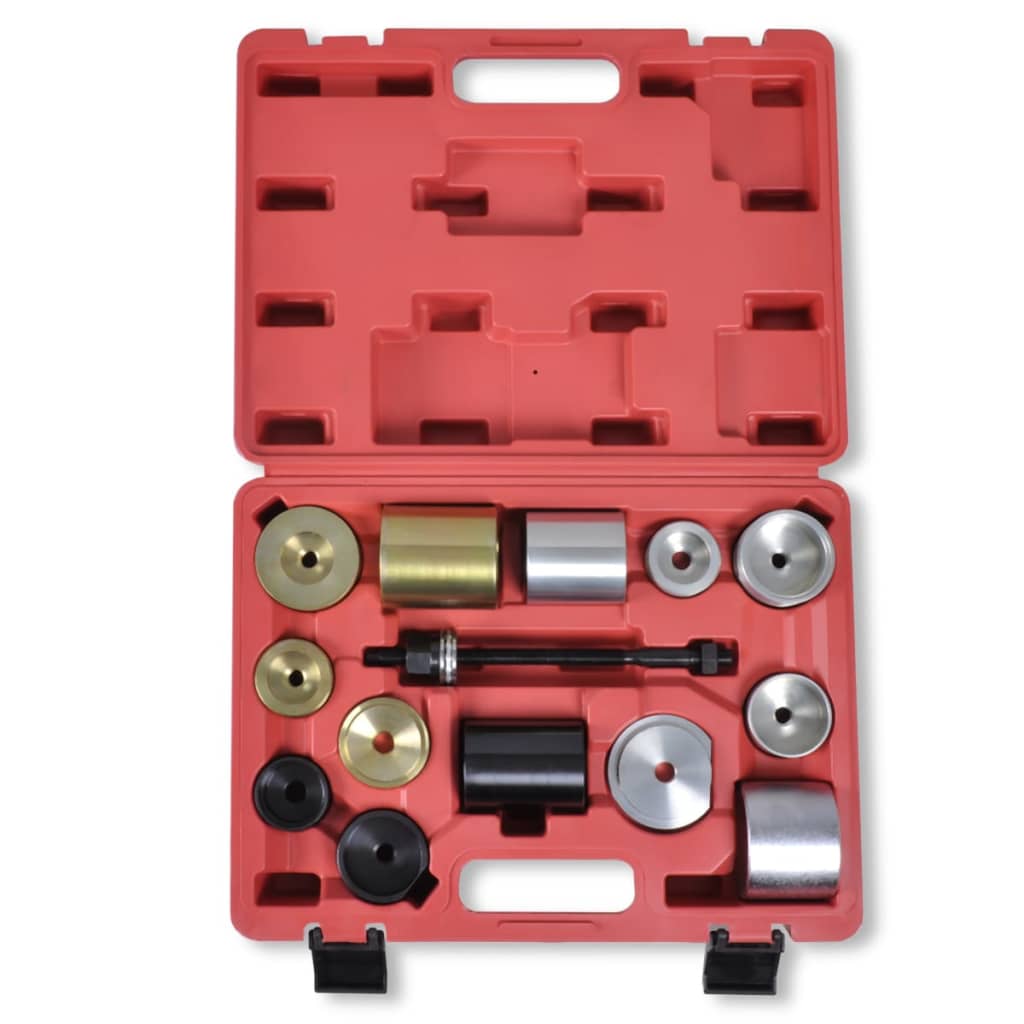

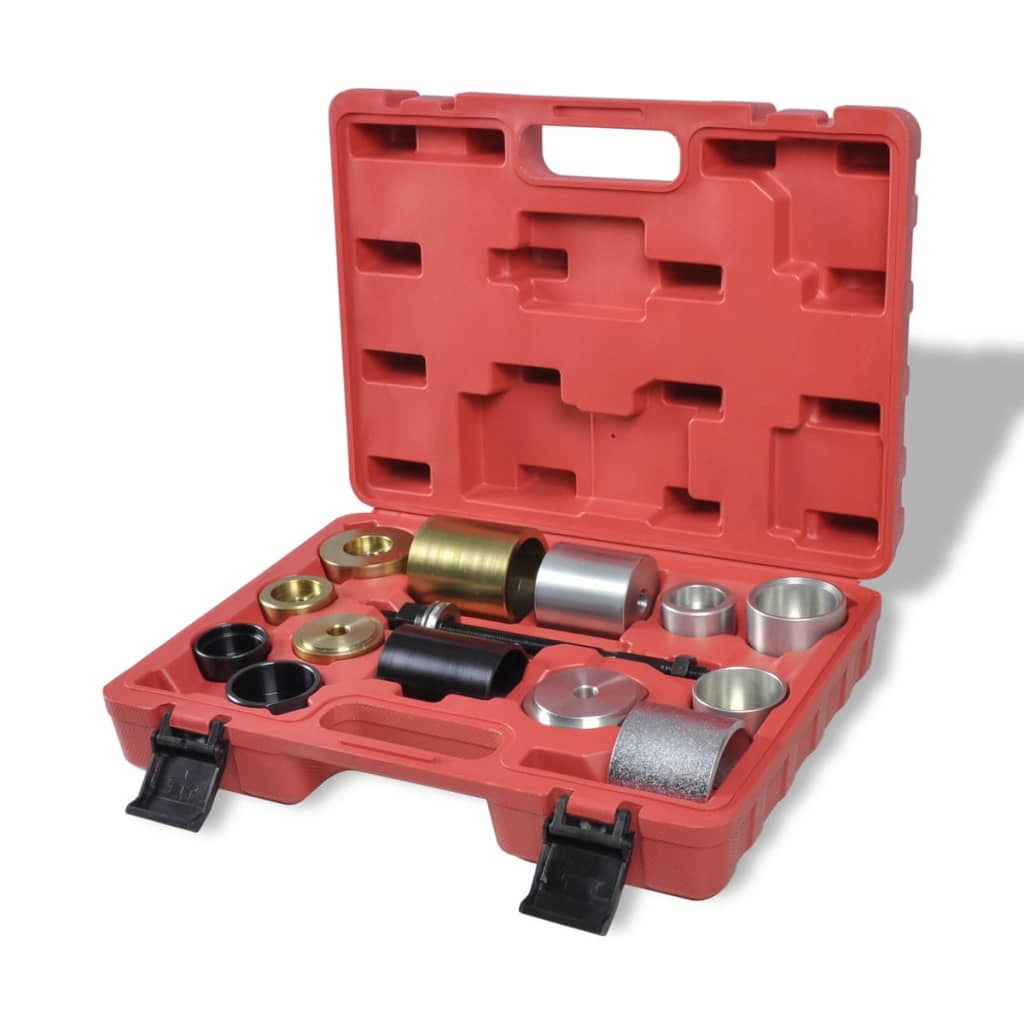

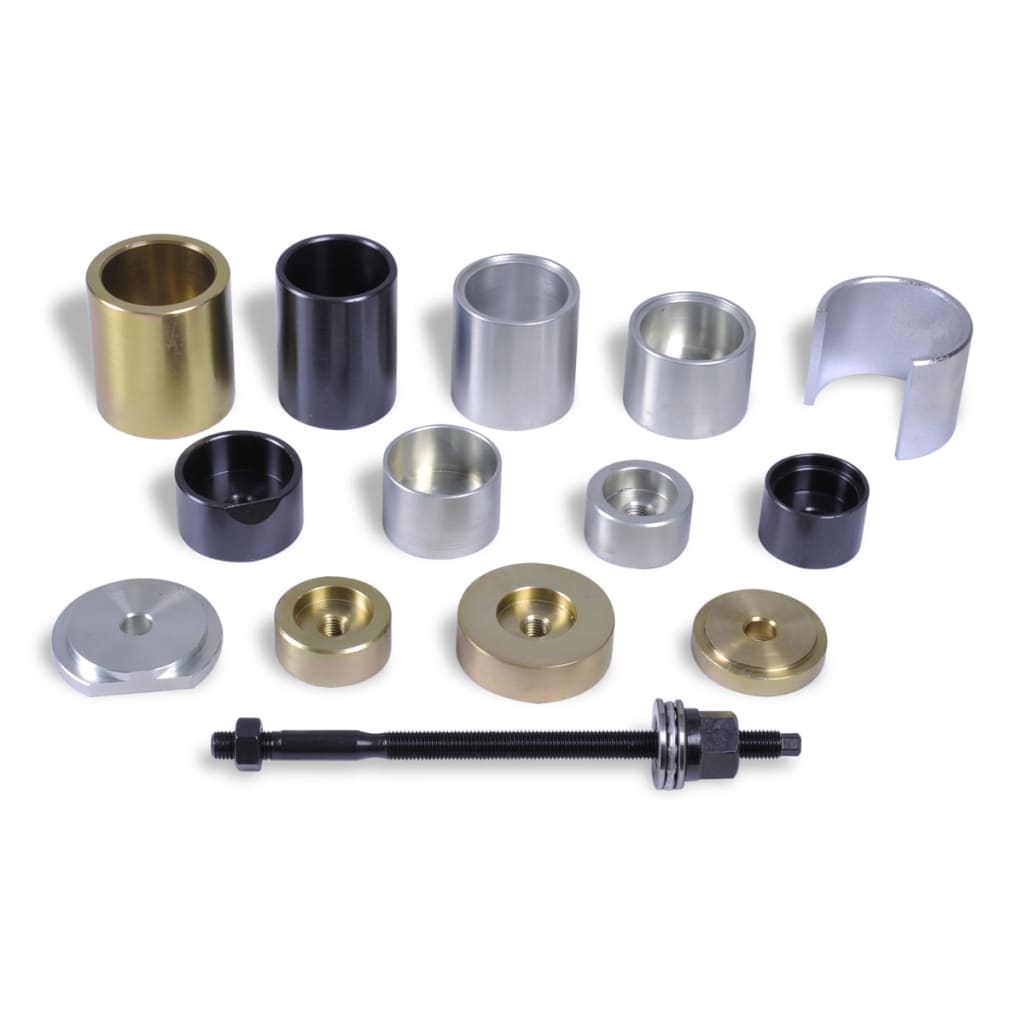

• Silent bearing tool set for BMW, 14 pcs as below
• A feed rod:
• Length: 225 mm
• Thread size: M12 x 1.5 mm
• Hex drive wrench length: 8 mm
• Used for actuating the Silent bearing
• A spindle nut:
• Thread size: M12 x 1.5 mm
• Hexagonal drive wrench length: 19 mm
• A compression nut(with axial groove bearing):
• Internal thread size: M12 x 1.5 mm
• Hexagonal drive wrench length: 24 mm
• A support sleeve(side slits):
• Outer diameter: 70 mm
• Inner diameter 57.5 mm
• A support plate:
• Hole diameter: 12.5 mm
• Outer diameter 70 mm
• Trimmed with outer diameter: 57 mm
• Height 12.2 mm
• A pull-out pressure sleeve:
• Internal thread zies: M12 x 1.5 mm
• outer diameter: 51 mm
• Inner diameter 49.7 mm
• Height: 35.2 mm
• An intake pressure sleeve:
• Internal thread size: M12 x 1.5 mm
• Outer diameter: 58 mm
• Inner diameter: 47 mm
• Height: 43.1 mm
• A pull-out spacer sleeve:
• Bore diameter: 12.5 mm
• Outer diameter: 55 mm
• Inner diameter: 46 mm
• Height: 72.3 mm
• A pull sleeve:
• Hole diameter: 12.5 mm
• Outer diameter: 45 mm
• Inner diameter 36 mm
• Height: 30.1 mm
• An intake spacer sleeve:
• Internal thread size: M12 x 1.5 mm
• Outer diameter: 55.1 mm
• Inner diameter: 46.5 mm
• Height: 30.1 mm
• With lateral phase
• A spacer sleeve:
• Hole diameter: 12.5 mm
• Outer diameter: 58 mm
• Inner diameter 47 mm
• Height: 60.5 mm
• A sleeve:
• Bore diameter: 12.5 mm
• Outer diameter: 65 mm
• Inner diameter 50.3 mm
• Height: 70.1 mm
• A pull-out pressure piece:
• Internal thread size: M12 x 1.5 mm
• Outer diameter: 48 mm
• Inner diameter: 32 mm
• Height: 20.1 mm
• An intake pressure piece:
• Internal thread size: M12 x 1.5 mm
• Outer diameter: 65 mm
• Inner diameter: 32 mm
• Height: 20.3 mm

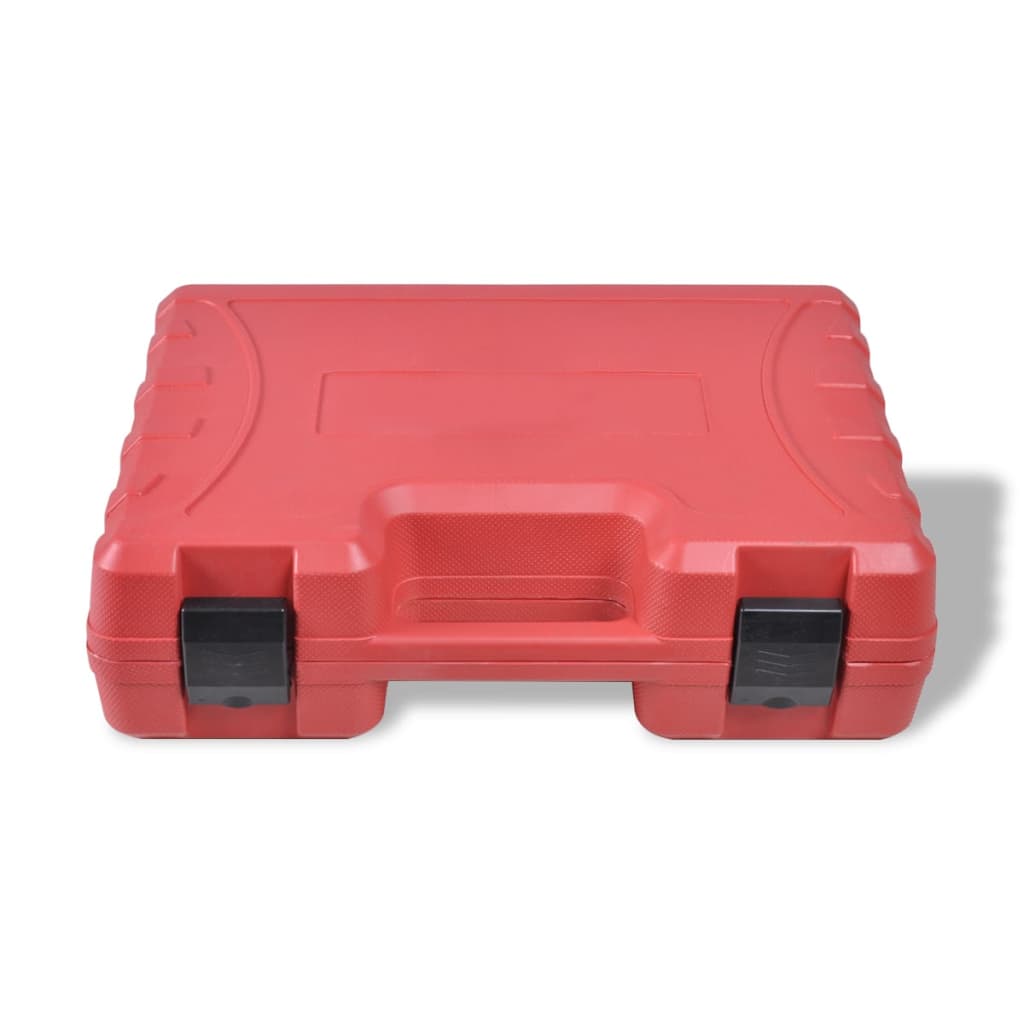

• A molded case, various print pieces, stem and pods are included
• Allows the renewing of rubber bushings the suspension
• Suitable for vehicles from BMW, 1 Series models (e.g. E81 , E87; 3 Series E36, E46, E83, E90, E91, E92, E93; 5 Series models E60, E61, E63; 6 Series models , E64 , E38; 7 Series models, E65, E66, E67; 8 Series models E31, E85 Z4 models, E86, and Mini Cooper S R53 model)
• EAN: 8718475855750
• SKU: 210197
• Brand: vidaXL

• SKU: 210197
