Product information

Description

General description

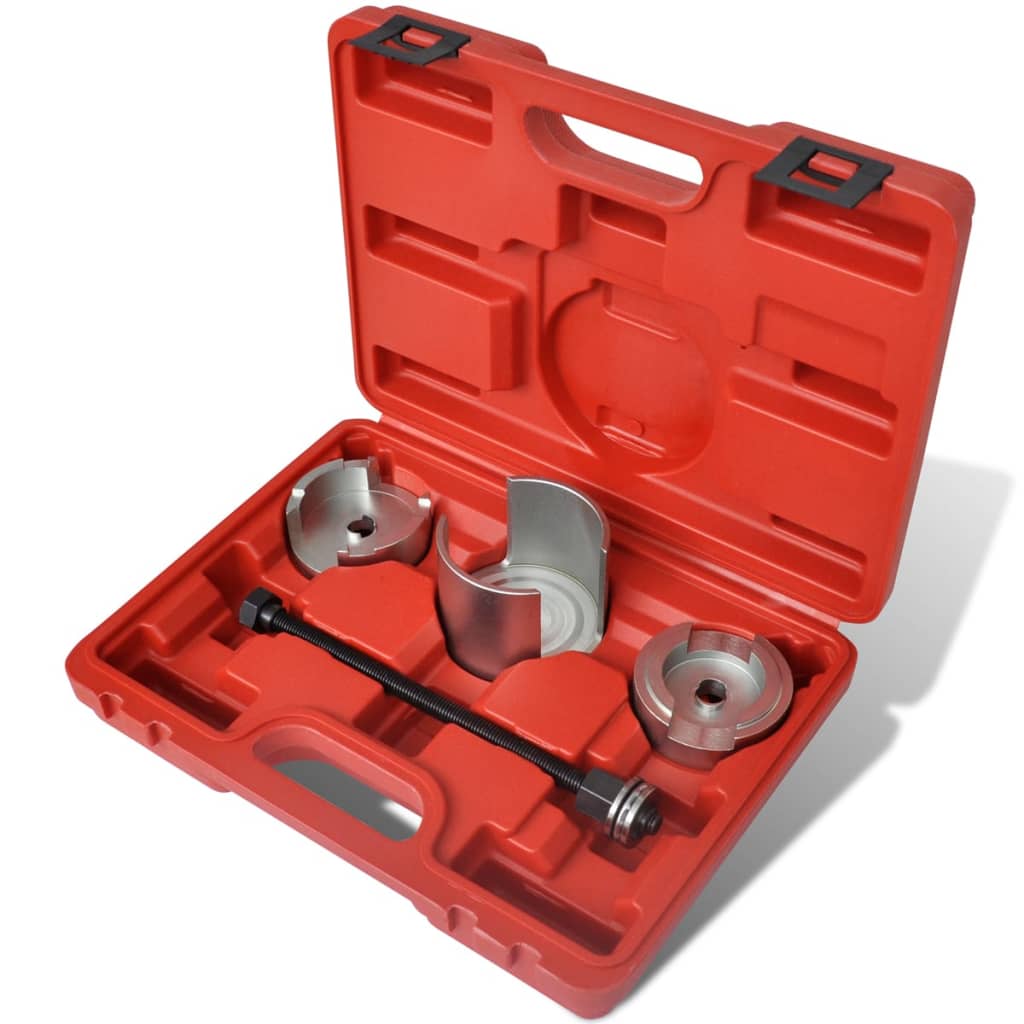

This Rear Axle Bearing Sub Frame Tool Set, made of quality carbon steel, is an essential tool set for mechanics, specifically designed for Renault Laguna models (2001 - 2007). It facilitates the replacement of the sub-frame bushing and the disassembly and assembly of the rear axle without causing damage. The fine thread and thrust bearing allow for quick and easy fitting of the pressure sleeve. All tools are conveniently stored in a blow molded case for easy transportation and long-lasting use.

Technical specifications

  • Material: Heavy-duty carbon steel
  • Weight: 2.95 kg
  • Pressure sleeve: 15.6 mm bore diameter, 88.2 mm outer diameter, 72.2 mm height, with 2 opposing recesses, 43.3 mm wide, 62.3 mm high
  • Pressure piece 1: 15.6 mm hole diameter, 80 mm outer diameter, 30.2 mm height, with 2 opposing recesses, 42.2 mm wide, 19.9 mm high
  • Pressure piece 2: 15.6 mm hole diameter, 77.6 mm outer diameter, 21 mm height, with 2 opposing recesses, 31.1 mm wide, 9.7 mm high
  • Spindle: 247 mm long, M12 x 1.75 mm, with hexagon drive wrench screws and nut

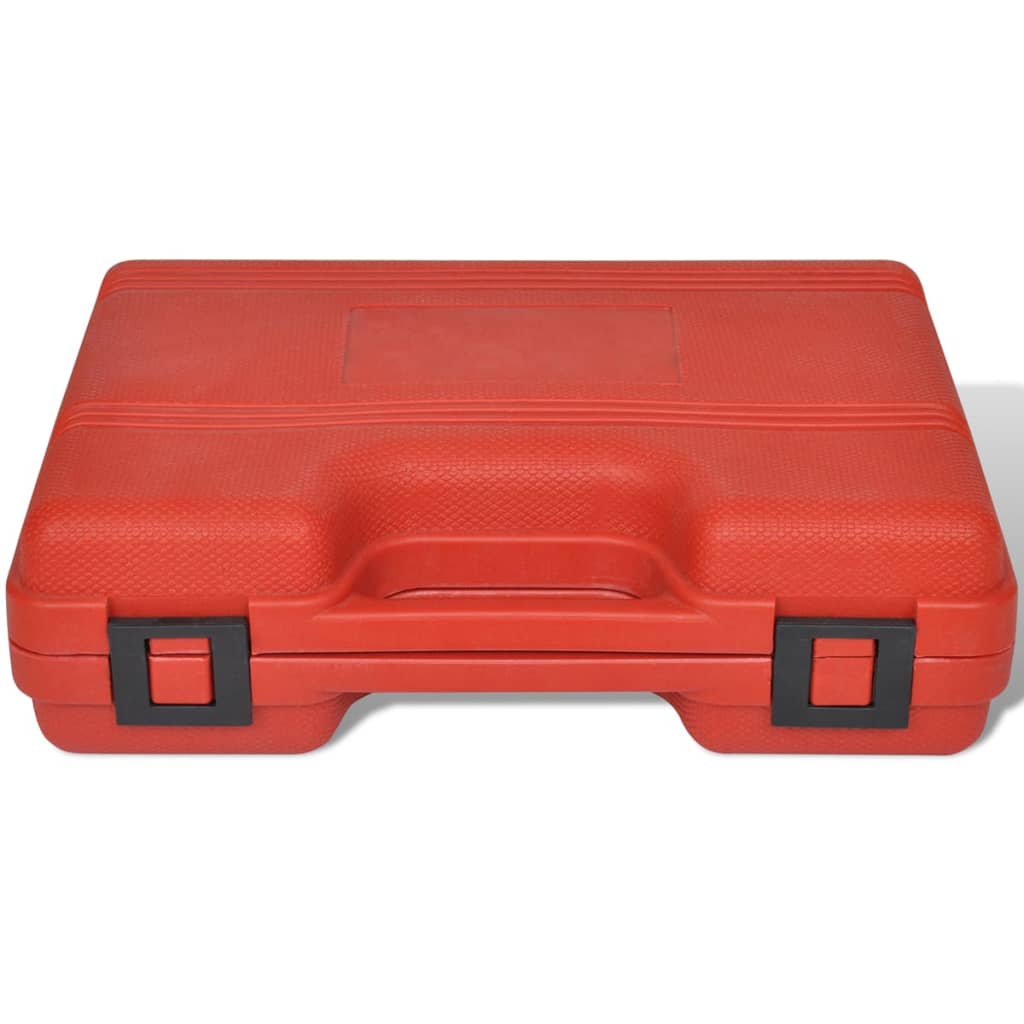

  • Storage case dimensions: 33 x 25 x 9 cm (L x W x T)

Compatibility and accessories

  • Compatible with Renault Laguna (2001 - 2007)

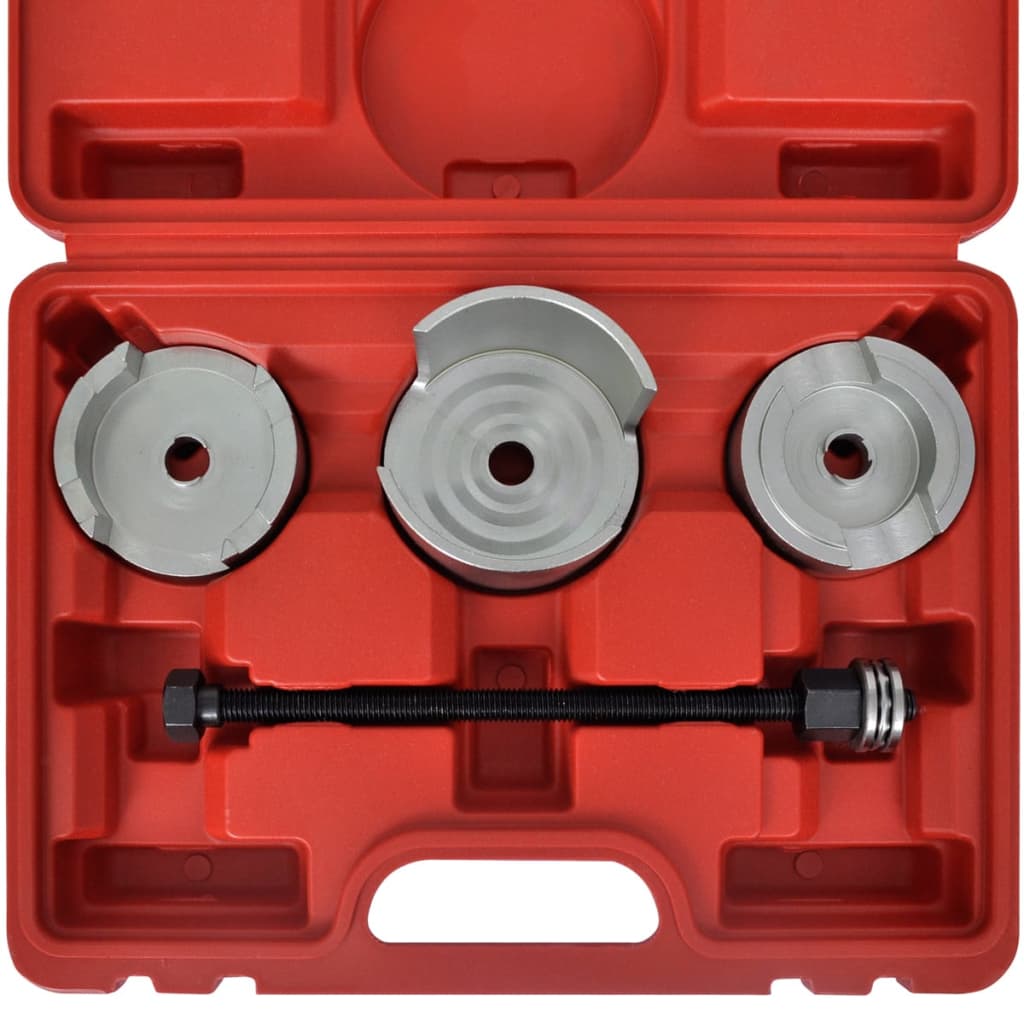

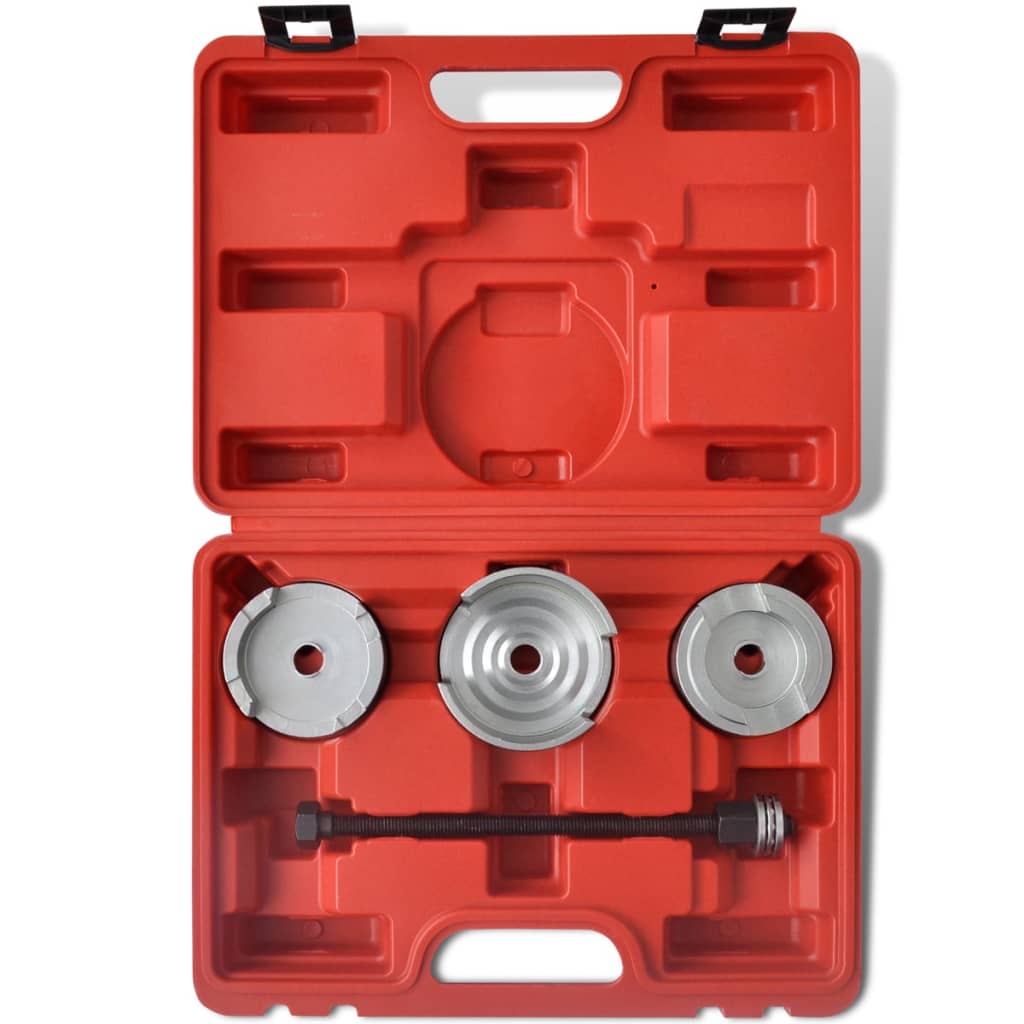

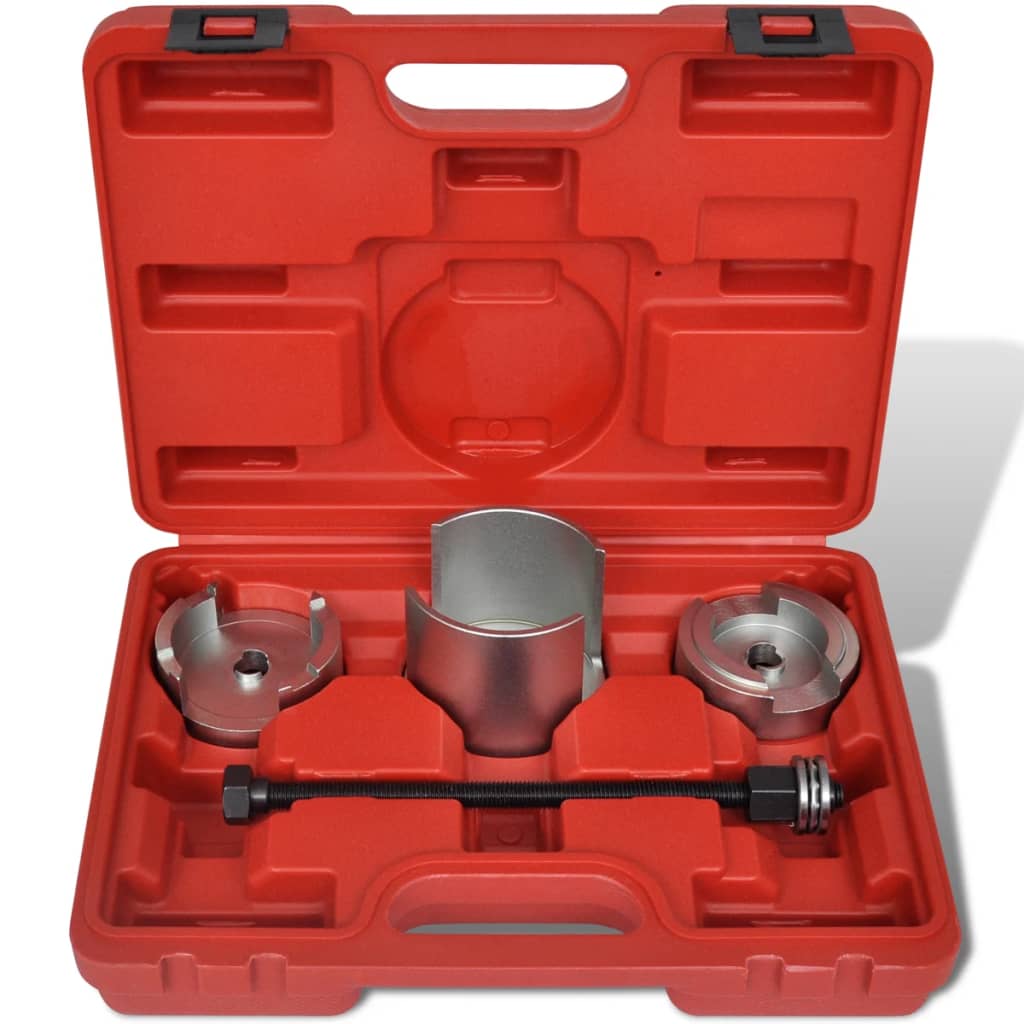

  • Includes: 1 pressure sleeve, 2 pressure pieces, 1 spindle, and 1 molded plastic storage case

Other information

Features

  • Brand
    VIDAXL
  • Length
    33 cm
  • Width
    33 cm
  • Height
    25 cm
  • Weight
    2950 g

Customer reviews

PPatrick
Published on 10/03/2022, France

very good product, removal and refitting of the silent blocks without any problem. (Well lubricate the threaded rod and the ball bearing)

BBenard
Pro Customer
Published on 26/10/2022, France

I used this product and it worked. However I forced it too much and it broke. I fixed it and it can be used again. This tool deserves a more solid design (which is possible)

MManoMano Customer
Published on 25/02/2019, France

Fits perfectly to the Laguna2 silent block. A good dose of stain remover is necessary, but the 12mm threaded rod twists a little anyway (straightened at the end of work). The reassembly must be meticulous not to cross the silent block and not to force with the tool. Otherwise save a lot of time. A rod of 14mm would be better but I think it would not pass through the silentbloc

MManoMano Customer
Published on 16/10/2019, France

Hello The product corresponds to the description, meets the needs: change rear axle silent block Laguna II 2002 Operation of delicate replacement to be carried out when the silent block is not original: the screw forces and bends under the effort of a piece of lower quality: less well adjusted which hardly fits in its housing or even blocks because not well enough guided by the kit ... The kit can avoid expensive costs: +/- 600 €. With a quality silentbloc I recommend the tool, otherwise the solution may prove to be more expensive in the end: immobilized vehicle ... :-( Good DIY! :-)

TThibaut
Published on 20/03/2019, France

I used it for my rear end and he will not be able to crack the threaded rod and HS, the nets are completely distorted, too bad there is just his problem otherwise the rest niquel

PPhilippe
Published on 26/03/2021, France

Well thought-out product for removing axle silentblocs on laguna 2 series 2 grandtour. Remember to grease the threads well before using.
