Diamond 900 Central Heating Kitchen Plinth Heater: White Grille Under Cupboard Heater

Name: Diamond 900 Central Heating Kitchen Plinth Heater: White Grille Under Cupboard Heater
Brand: MANISSA
SKU: BIDEX900 BIDEX900/WHTG
Price: 144.99 GBP
Availability: InStock
Rating: 4.5 (4 reviews)

Sold by Manissa

Product information

Description

General description

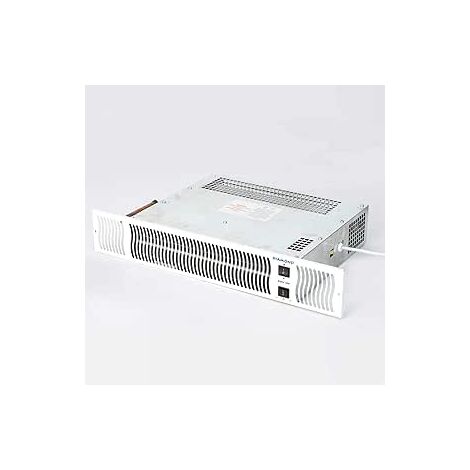

The Diamond 900 plinth heater is a high-quality heating solution designed for your kitchen. By utilizing the space under cupboards, it maximizes your kitchen work area while freeing up valuable wall space. This heater connects directly to your central heating system and fits neatly in the plinth space under a unit or cupboard. Heat is circulated into the room through a heat exchanger using a low noise two-speed fan. The fan convector operates automatically with the central heating system, making it more cost-effective than electric-only heaters and preventing overheating caused by dust accumulation.

Technical specifications

Normal Heat Output: 1868 watt (6370 BTU)

Boost Heat Output: 2077 watt (7078 BTU)

Maximum Working Pressure: 10 bar (1MPa)

Water Connections: 15mm compression

Electrical Supply: 220-240v - 50Hz

Noise Levels: In accordance with EN23741

Level Floor Area Required: Under the cupboard base

Guarantee: 2 years

What's Included

Diamond 900 Plinth Heater unit

Coloured fascia grille

2x 700mm long 15mm flexible hoses with isolating valves

Grille screw fixing kit

Instruction Manual

Installation

Easy to install under the cupboard base

Connects directly to the central heating system

Usage

Automatically switches on and off with the central heating system

Temperature switch detects hot water and activates the fan

Manual fan boost option available for additional heat

Manual override to turn off the fan if not required

Features

Brand
MANISSA
Colour
White
Power
2077 W
Material
Steel
Power source
Corded
