Diamond 900 Central Heating Kitchen Plinth Heater: Stainless Steel Grille Under Cupboard Heater

Name: Diamond 900 Central Heating Kitchen Plinth Heater: Stainless Steel Grille Under Cupboard Heater
Brand: MANISSA
SKU: BIDEX900 BIDEX900/SSHG
Price: 144.99 GBP
Availability: InStock
Rating: 4.5 (4 reviews)

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by Manissa

Product information

Description

General description

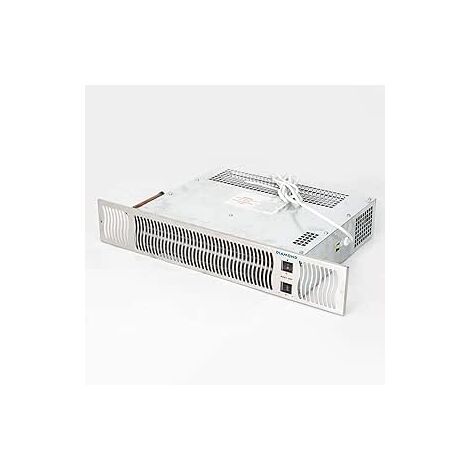

The Diamond 900 plinth heater is a high-quality heating solution designed for kitchens. It utilizes the space under cupboards, freeing up valuable wall area to maximize your kitchen work area. This heater connects directly to your central heating system and fits neatly in the plinth space under a unit or cupboard. Heat is circulated into the room through a heat exchanger using a low noise two-speed fan, making it a cost-effective alternative to electric-only heaters.

Technical specifications

Heat Output: Normal 1868 watt (6370 BTU) / Boost 2077 watt (7078 BTU)

Maximum working pressure: 10 bar (1MPa)

Water connections: 15mm compression

Electrical supply: 220-240v - 50Hz

Noise levels in accordance with EN23741

Level floor area is required under the cupboard base

Guarantee: 2 years

What's Included

Diamond 900 Plinth Heater unit

Coloured fascia grille

2x 700mm long 15mm flexible hoses with isolating valves

Grille screw fixing kit

Instruction Manual

Usage

The Diamond plinth heater is easy to use. It automatically switches on and off with your central heating system. A temperature switch inside the unit detects hot water circulating and activates the integral fan. If additional heat is needed, you can manually boost the fan to push residual hot air into the room. There is also a manual override to turn off the fan if not required.

Features

Brand
MANISSA
Power
2077 W
Colour
Multicolour
Material
Steel
With fixings supplied
Yes
Energy efficiency rating
A
Max. energy efficiency rating
A
Min. energy efficiency rating
G
Pipe thread size
1/2" (15x21)
Height
100 mm
Width
40.5 cm
Weight
8 kg
Max pressure
10 bar
Energy type
Hot water
Radiator type
Hot water
ManoMano Reference
ME80323890
MMID
717985496752
Product code
BIDEX900 BIDEX900/SSHG
EAN
730052260274

Customer reviews

4,5

/ 4 Reviews

Reviews verified by ManoMano

Customer photos

Jjulie

Published on 09/07/2024, United Kingdom

I’ve given a five star rating based on my plumber’s comments on the product. It arrived the next day, which was impressive.

MMark

Published on 05/12/2023, United Kingdom

Delivered on time. Well packaged and looks to be a sturdy piece of kit and the grill is aesthetically pleasing. The fixings are pretty standard but I have yet to fit the unit so no comment at the moment. However the huge btu rating should get the job done and prevent the need for a wall mounted radiator in the kitchen \ diner.
