General description

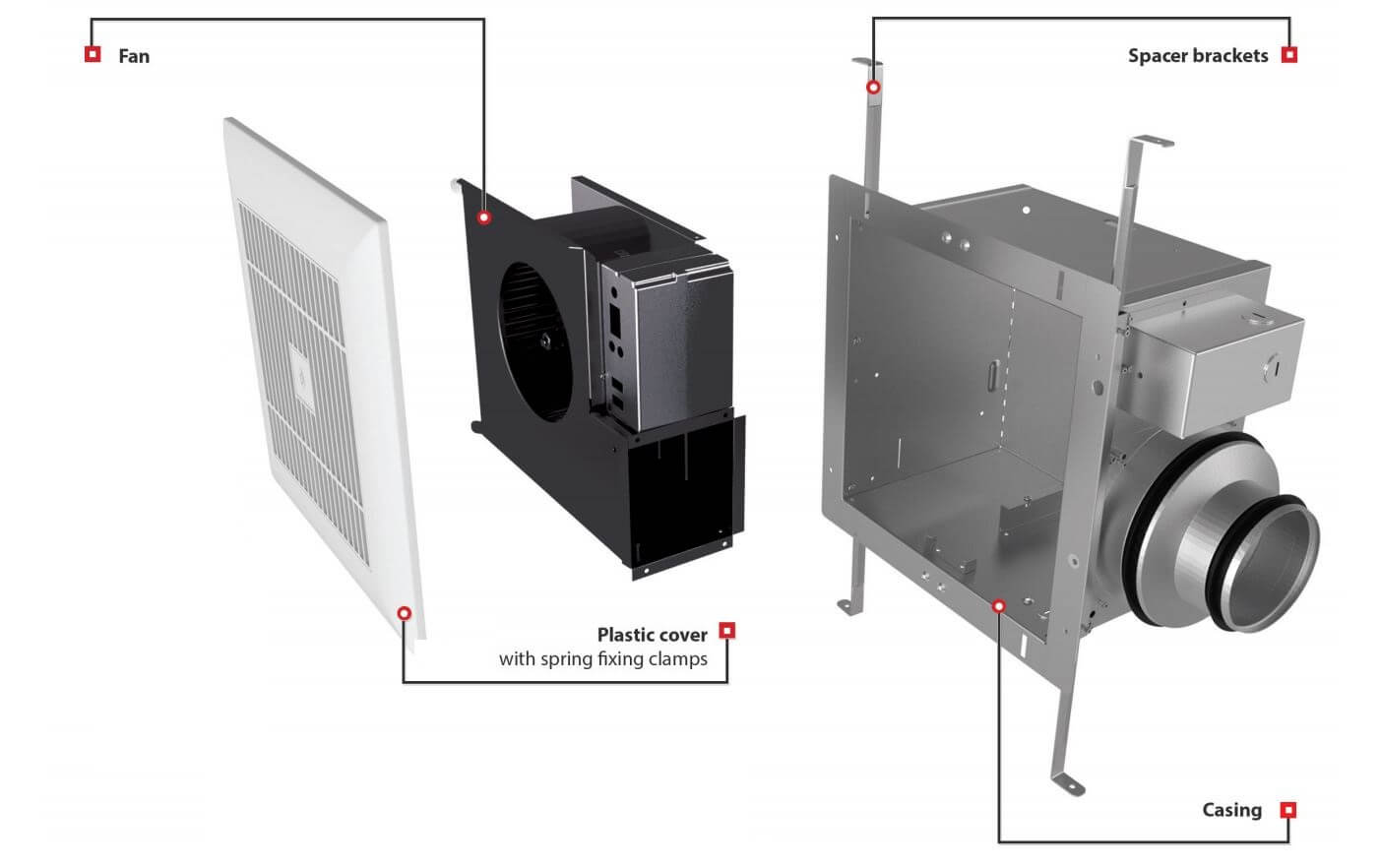

The Ceiling-mounted Extractor Fan CBF 250 is designed for effective ventilation in various spaces such as bathrooms, kitchens, and living rooms. It features a robust construction with a galvanized steel housing and an ABS plastic impeller, ensuring durability and efficiency. The fan operates at two speed levels and includes an integral backdraught shutter to prevent cold air infiltration.Technical specifications
- Voltage: 220-240 V ~ 50 Hz
- Wattage: 23 / 39 W (min./max.)
- Current consumption: 0.12 / 0.18 A (min./max.)
- Revolutions per minute: 756 / 1122 (min./max.)
- Airflow rate: 170 / 260 m³/h (min./max.)
- Airflow rate: 47 / 72 l/s (min./max.)
- Sound pressure level: 25 / 29 dB(A) (min./max.)
- IP code: IPX2
- Insulation class: I
- Ambient temperature: +1°C to +40°C
- Weight: 5.3 kg
Compatibility and accessories
- Nominal diameter: 100 mm, 150 mm
- Includes mounting frame
- Suitable for pipe systems with high air resistance
Installation
- Mounting options: ceiling
Usage
- Ideal for permanent and interval ventilation in bathrooms, showers, kitchens, and living rooms
Other information
