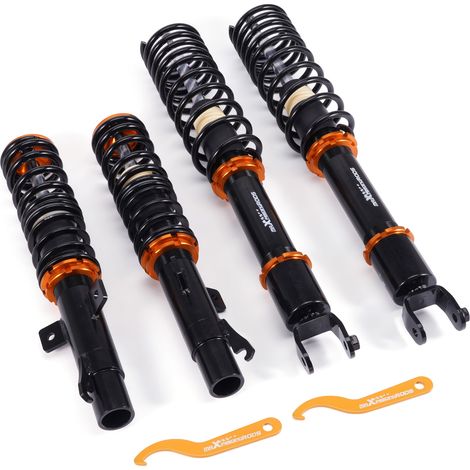

Coilover for Mazda 121 III 1995-2002 JASM,JBSM Suspension Lowering Kit

Application:

For Ford Fiesta IV (Typ JAS,JBS) 08.1995-2002

For Ford Ka  (Typ RBT) 1996-2003

For Ford Puma (Typ ECT) 1997-2001

For Mazda 121 III (Typ JASM,JBSM) 08.1995-2003

Note: Rear fork type bracket model only

Specification

Height adjustable: Yes, lowering 0-25mm depending on the vehicle models

Damping : fixed damping

Top mounts: Front and rear OE top mounts required

Spring Rate Front: 7 kg/mm（392 lbs/in)

Spring Rate Rear: 2.5 kg/mm (140 lbs/in)

Front spring inner diameter: 62 mm

Rear spring inner diameter: 62-87 mm

Spring length Front: 140 mm

Spring length Rear: 308 mm

Helper spring rate Front: 1 kg/mm (56 lbs/in)

Helper spring length Front: 102 mm

Spring Preload advised: 7-10 mm

Shock Type: Twin tube

Package included

2x Front coil-overs
2x Rear coil-overs
2x C spanners

Feature

1.  0-25mm(depends on vehicle models) lower height adjustable
2. Dust boot, solid rubber bump stops
3. Weight Saving Aluminum Components And heavy duty Steel Lower Mount Brackets
4. Simple install,  Easy to adjust.
5. Use the vehicle's original upper mounts (not included in our product kit).

Note

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-20 months will keep it smooth and clean, which helps to extend the lifetime.
