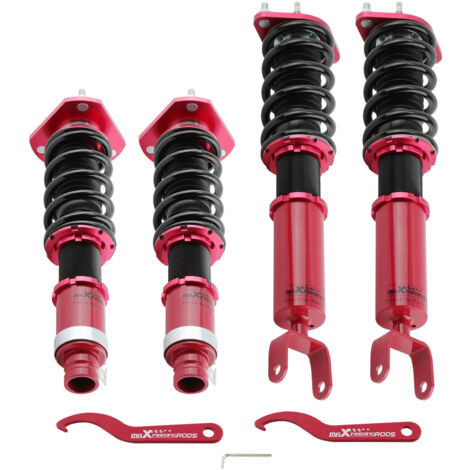

Coilovers Struts Shocks Suspension Kit For Honda Prelude BB 1992-1999 2000-2001

 Application:

For Honda Prelude BB1-BB9 1992-2001

Note:

This coil-over is perfectly suitable with TYPE S, SiR, and S SPEC which has strut tower bar mounting points.
It can also be used directly for some USDM Preludes which have reserved factory mounting points.
For some models without mounting points, you can remove the 2 additional studs.

Specification:

Adjustable height: lowering 1-3 inch

Top mounts: pillow ball top mounts

Damping:  24 levels rebound damping adjustable

Top mounts: pillow ball top mounts

Spring rate Front: 8 kg/mm (448 lbs/in)

Spring rate Rear: 7 kg/mm (392 lbs/in)

Spring length Front: 180mm

Spring length Rear: 200mm

Shock type: Twin tube

Spring preload: 7-10 mm


Feature:

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance
2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
3. Twin-Tube structure allows sufficient stroke within the shock absorber.
4. Separate height adjustment does not affect damper stroke.
5. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance.
6. Height Adjustment tools included.
7. Pillow ball top mount - It improves the steering feel and response.
8. Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
9. Full rebuildable.

Notice

* Professional installation & alignment suggested.
* Please feel free to contact us for whatever we can help
