Coilovers Suspension Kit for VW Golf MK5 MK6 Jetta 2003-2012 GTI TDI TFSI

Notice: Search for "How to Install the Coilover for Volkswagen Golf R 2009-2012" on YouTube

Application :

For VW Golf MK5/A5 2003-2009 (GTI,DTI)

For VW Golf MK6/A6 2009-2012

For VW Jetta MK5/A5 2005-2011

For VW Jetta MK6/A6 2011-2019

Note: Compatible with front strut inserts of 54.5mm inner diameter.

Specification:

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

Damping : Not adjustable

Front top mount: Pillow ball bearing camber plate

Rear top mount: OE top mount required

Camber adjustable: Available

Spring rate Front: 6 kg/mm (336 lbs/in)

Spring rate Rear: 6 kg/mm (336 lbs/in)

Spring length Front: 160 mm

Spring length Rear: 180 mm

Spring Preload advised: 7-10 mm

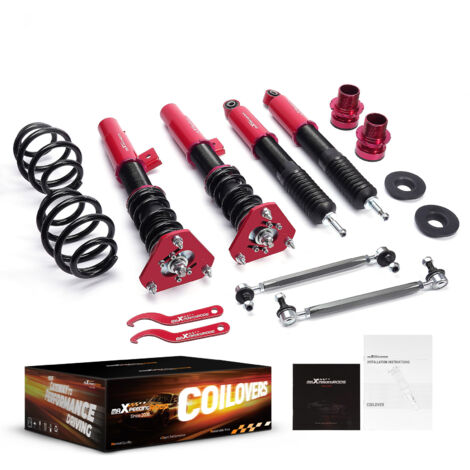

Package included：

2x Front coil-overs
2x Rear coil-overs
2x Swaybar end links
2x C spanners

Feature:

1. Lowered height adjustment from 25-75mm (depends on vehicle models)which allows a lower center of gravity and also add a more aggressive stance
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)
4. CNC machined Aluminum  top mounts and lockers-- - excellent strength, and save weight
5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
6. High tensile spring---  600,000 times continuously test to assure its high tensile strength.
7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
8. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
9. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
