Air Suspension Kit w/ Compressor For Fiat Ducato Peugeot Boxer 1994-2024 4000kg

Name: Air Suspension Kit w/ Compressor For Fiat Ducato Peugeot Boxer 1994-2024 4000kg
Brand: MAXPEEDINGRODS
SKU: GG250806A11
Price: 220 GBP
Availability: InStock
Rating: 4 (1 reviews)

~~£308.00~~

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by maXpeedingrods GB

Product information

Description

General description

Air Suspension Kit with Compressor designed for Fiat Ducato, Peugeot Boxer, Citroën Relay, and Citroën Jumper models from 1994 to 2024. This kit is suitable for various body types including panel vans, tippers, motorhomes, campers, and box vans. It is compatible with both single and twin rear wheel configurations, as well as front-wheel drive (FWD) and rear-wheel drive (RWD) chassis types, excluding Alco type torsion bars chassis.

Technical specifications

Max loading: 4000 kg

Chassis Placement on Vehicle: Rear left and right

Wheelbase: 156 mm

Package dimensions: 42 x 37 x 27 cm

Package weight: 12.4 kg

Air spring design height: 172 mm

Air spring stroke: 140 mm

Air spring extended height: 230 mm

Air spring compressed height: 90 mm

Compressor power: 150W

Output voltage: 12V

Maximum current: 10A

Maximum working voltage: 10 bar (1 MPa)

Compressor hose diameter: 0.72 m

Compressor cable diameter: 2.6 m

Compatibility and accessories

Compatible with Fiat Ducato, Peugeot Boxer, Citroën Relay, and Citroën Jumper (1994-2024)

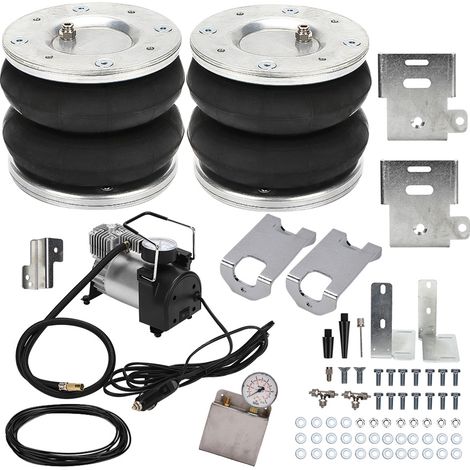

Includes: 2x Natural Rubber & Hi-tensile steel air spring bags

4x Galvanised heavy-duty mounting brackets

1x 12V air suspension compressor

1x Barometer

4x Air fittings

1x 5m air line

1x Tee T-fitting

2x Hex valve air fittings (G1/8)

1x Installation box

All necessary bolts, screws, washers, and spring washers for installation

Installation

Professional installation is recommended for optimal performance and safety. The kit is designed for excellent and practical bolt-on installation.

Usage

This air suspension kit restores the original ride height, improves ride quality, ensures driving comfort, and reduces tire wear.

Other information

Stress tested over 5,000,000 times for durability and safety

Burst pressure ≥ 2.0 MPa for high compressive strength and reduced noise

Air tightness test ≤ 0.02 MPa guarantees 100% air tightness

Temperature range: ≥ -40℃ / ≤ 70℃ using premium natural rubber material

High-quality steel used for load-bearing capacity and longevity

Features

Brand
MAXPEEDINGRODS
Warranty
2 year(s)
Shock absorber installation
Rear
Shock absorber only
No
Maximum stroke
140 mm
Complete strut assembly
Yes
Length
428 mm
Material
Steel
Pcs per pack
2
Adjustable
Yes
Strut type
Suspension
Type of vehicle
Camping car
ManoMano Reference
ME94337487
MMID
458873350267
Product code
GG250806A11
EAN
6941441703454

Customer reviews

4,0

/ 1 Reviews

Reviews verified by ManoMano

MManoMano Customer

Published on 31/01/2026, France

I haven't completely finished the assembly yet. The air chambers are good quality Rubena.eu 170x2. The rest is cheap Chinese parts. I redesigned and modified the top and bottom plates, which are usable but very poorly suited to the operating height described in the Rubena.eu technical specifications. More info at mecrated@hotmail.fr

1 person found this helpful
