Draper 32165 Laserliner 036.703A PocketPlane-Laser 3G Set Three-Dimensional Laser, 150cm
Sold by BuyaParcel
You may also like
Compare with similar items
Often purchased together
Product information
Description

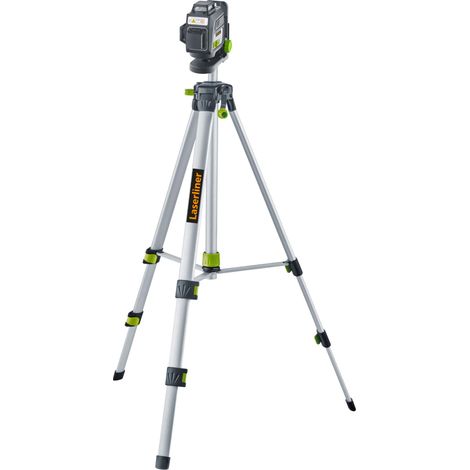

This three-dimensional, compact and highly visible green laser projects one horizontal and two vertical laser circles for precise alignment of objects. The laser crosses form a plumb function for working simultaneously on floors and ceilings. A manual slope mode is available for creating gradients. This laser is all you need for demanding projects thanks to the comprehensive range of accessories. Multi-section telescopic tripod legs and a 30 cm crank on this compact tripod provide an extensive adjustment range. The PocketWallHolder is a multi-functional, height-adjustable, magnetic bracket for attaching to walls, metal items and tripods with a 1/4” or 5/8” thread. Supplied with battery.
- Three-dimensional laser with a horizontal and two vertical 360° laser circles
- Accurate horizontal and vertical alignment of objects
- Good visibility through green laser technology
- Easy alignment of slopes with manual tilt function
- Plumb function for synchronous working on floor and ceiling
- Light and robust compact tripod 150cm
- Crank height adjustment and telescopic tripod legs
- Height-adjustable, magnetic, multi-function bracket with 1/4” and 5/8” thread for attaching to walls, metal items and tripods
- Magnetic target plate with stand, nail hole and dual scale – perfect for working close to ceilings
- Supplied with battery
- Horizontal/vertical levelling: Yes
- Manual slope function: Yes
- Battery and mains operation: Yes
- Hand receiver mode: Yes
- Self-Levelling Range: ± 3.5° (horizontal)
- Accuracy: ±0.3 mm/m
- Levelling: Automatic
- Visibility (Typical)*: 30 m
- Laser Wavelength: 515 nm
- Laser Class: 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
- Power Supply: Li-ion battery pack 3.7V / 3.6Ah / 13.32Wh, Power adapter 5V / DC / 2A
- Operating Time: with 3 laser levels: approx. 9 hours
- Operating Conditions: 0°C 50°C
- Storage Conditions: -10°C 70°C
- Dimensions (W x H x D): 104 mm x 97 mm x 76 mm
- Weight: 388g (incl. Akkupack)
Features
- BrandLASERLINER
- Length63.5 cm
- Range30 m
- Warranty2 year(s)
- OriginMade in China
- Beam colourGreen
- Self-levelling (feature)Yes
- Battery or cell includedYes
- Laser class2
- Remote operationYes
- Light colourGreen
- Self-stabilizing beamYes
- Laser shapeCross
- Height130 mm
- Width345 mm
- MaterialMetal
- Parallel leveling (360°)Yes
- Weight388 g
- Plumb markYes
- Type of batteryRefillable
- Projection typeCross
- ManoMano ReferenceME73973946
- MMID744960189864
- Product code4021563725496
- EAN4021563725496
