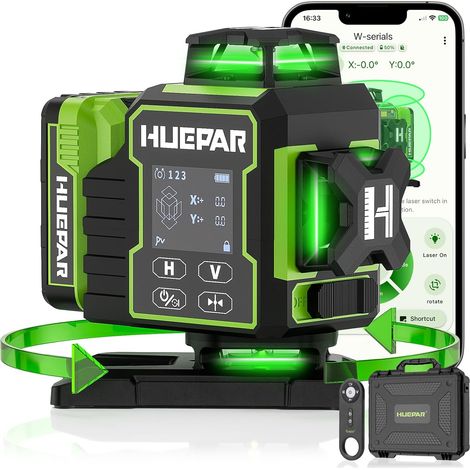

Huepar 4x360° Green Laser Level, Self-Leveling with Bluetooth, Electric Rotating Base and Large LCD Screen, 4D Level with 16 Lines for Construction Work

🏆 5-Year Warranty & Lifetime Support

Huepar offers a 5-year warranty on all 3D/4D laser models – including free replacement in the first year (a completely new device with battery and accessories). In years 2–5, you will receive a refurbished replacement device in case of irreparable damage – a promise of durability and sustainability.

🏅 Award-Winning Laser for Professionals – Winner of the MUSE Design & London Design Award 2024

The Huepar W04CG is the first choice for construction professionals, interior designers, tilers, and precision-oriented DIYers. With its 4 x 360° lines, motorized base, app control, and robust construction, it meets the highest demands on any construction site.

⚙️ Product Highlights at a Glance

Motorized 360° base with app and remote control
No more running back and forth! Control the rotation via app or remote control (up to 20m) in 3 speeds: quick adjustment or fine alignment in seconds.

``` 4 x 360° lines with 1/2" ground clearance
Perfect for tiling and flooring: The lowest line is only 13 mm above the floor. The lifting base allows the beam to be raised up to 9 cm.

Impact-resistant and weatherproof – for all applications
Rubberized protection, IP54 rating, shockproof and dustproof. TPU housing and metal finish provide protection even in the harshest conditions.

Intelligent LCD touchscreen – operable even with gloves
Shows in real time: battery level, laser status, tilt angle (X/Y), rotation speed, and mode. Bright display for day and night use.

16 lines – 4D complete coverage
The 4 x 360° lines (2 horizontal, 2 vertical) completely cover walls, ceilings, floors, and corners. H/V lines can be switched independently – saving energy and optimizing work.

Pulse, self-leveling, and manual operation Mode

For bright environments & outdoor use: Activate pulse mode and operate with a receiver up to 60m (or 120m with the LR-8RG, sold separately). ±3° auto-leveling with visual out-of-range warning.

OSRAM Laser Source & Aspherical Lenses
German OSRAM components ensure fast calibration (in 2 seconds), sharp, bright lines, and optimized projection without stray light.

📐 Technical Specifications – Huepar W04CG 4D Laser Device

Laser lines: 4 x 360° (2H + 2V), 16 lines total
Laser class: Class 2, <1mW power
Accuracy: ±1/9 inch at 10m (±3mm at 10m)
Self-leveling range: ±3°
Laser wavelength: 505–520nm green laser
Operating modes: Self-leveling / Manual / Pulse mode
Motorized base: 3 speed levels (9.1 mm/s, 48 ​​mm/s, 240 mm/s)
Display: LCD with touch function, backlit
Remote control: Via app (Bluetooth) or IR remote control (up to 20 m)
Range:
– Visible up to 40 m
– Up to 60 m with Huepar receiver (120 m with LR-8RG)
Power supply: 12.6 V / 2600 mAh Li-ion battery
Protection class: IP54 – Dust and splash water protection
Housing: TPU + ABS + metal laser window
Lower beam distance: 13 mm
Lifting platform height: 25 mm – 90 mm
Pendulum lock: For safe transport and manual angle projection

📦 Scope of delivery

✅ Huepar W04CG 4x360° laser device

✅ Rechargeable 12.6V / 2600mAh Li-ion battery

✅ Electrically motorized base (integrated)

✅ Magnetic mount with steel plate

✅ Lifting platform (lifting base)

✅ Laser target plate

✅ Break-resistant carrying strap

✅ AC adapter + Type-C charging cable

✅ Robust carrying case with insert

✅ User manual

⚠️ Safety warning

Never point the laser beam directly into your eyes – risk of injury!
