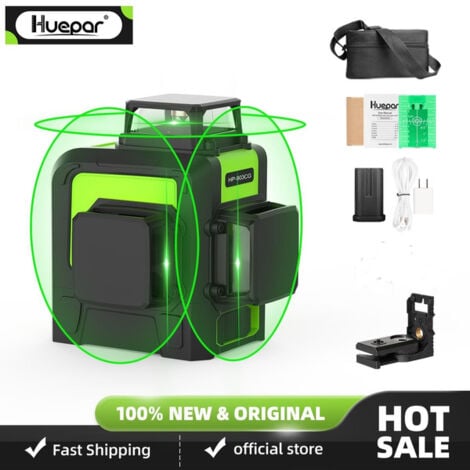

Huepar 3x360 3d laser level green Cross Line Laser Self Leveling 147ft 45m large Power 903CG

JAPAN SHARP GREEN LASER TECHNOLOGY

Adopt Sharp's laser unit, wihch is the best green laser unit in the word at present from Japan.

Green laser is 2 times brighter than red laser with the same light source. still accurate and clear under the sun, available for outdoor using.

FEATURES:

✿ The button introduction:

The laser level has three laser windows, each window can launch 4 laser lines, totally 12 laser lines(4 laser lines combine to a plane).  Attention: There are at least 4 laser lines, it can not keep 1 or 2 laser lines.

✿ Product Highlights:

The 903CG laser is a cross line laser level. This unit is self-leveling with accuracy range of within ± 4 °. The working range of this laser is up to 45m, depending on the work area’s illumination.

✿ Design:

The 3D 903CG laser level is a compact, practical option for basic cross line leveling work. Measuring at 1/4 ", the laser can fit comfortably in the palm of your hand. It has a hard plastic housing to protect the laser beams and pendulum leveling system within. The housing has a ribbed rubber casing that protects it from scratches while giving extra friction to make it slip resistant.

✿ Mounting Option:

The 3D 903G laser level has 2 mounting nut with a 1/4 " thread and a 5/8" thread at the bottom of the unit. This allows you to mount it either to a bracket or a tripod for security. The unit can be placed on a regular surface, but securing it usually guarantees less movement for more accurate work. A magnetic base is included in the package.

✿ Leveling Function:

Once the pendulum is in unlocked condition, the instrument will be self-leveling within 4 degrees, when the unit is using out of the leveling range, laser lines and main indicator will keep flashing.

✿ Pendulum Lock:

The 12 lines Green beam laser level is a precision instrument and should be treated with care. When not in use, the pendulum should always be in the Off position (OFF mode). Locking the pendulum allows the Cross Line Laser to better withstand vibration and Trauma incurred during transportation or if the units is dropped.

✿  The difference between the green laser and the red laser: endulum Lock:

They are from the same factory, the function is same.

SPECIFICATIONS:

Laser Beam Color: Green

Type: 12 Lines

Laser Class: Class 2 (IEC/EN60825-1/2014), output power <1mW

Laser Wavelength: 510 nm

Leveling Accuracy: ±3mm/10m

Leveling/Compensation Range: 4°±1°

Working Distance (Line): 45m, up to 60m with laser reveiver

Operating Time: 4 hours with all laser beams on

Spread Coverage: H360°/ V360° / V360° (3*360°)

Power Source: Li-lon battery

IP Rating: IP54, waterproof, dustproof and shockproof, reliable and tough.

Operation Temperature Range: 14℉- 122℉(-10℃-＋50℃)

Storage Temperature Range: -4℉- 158℉(-20℃-＋70℃

Size: 8.9*6.5*9.1cm (3.5”x3.58”x2.56”)

ITEMS IN THE PACKAGE:

1 X Huepar  903CG laser level

1 X Magnetic pivoting base

1 X Green laser target card

1 X Cloth case

1 X English User's Manual

1 X Lithium battery

1 X Battery charger
