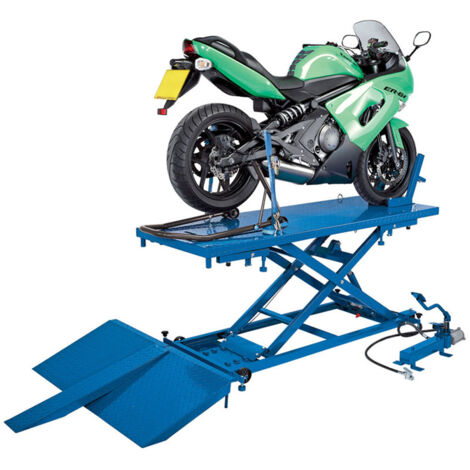

Draper 680kg Pneumatic/Hydraulic Motorcycle, ATV, and Small Garden Machinery Lift (Model 37190)

Description

• This heavy-duty lift is designed for motorcycles, ATVs, mini tractors, and similar-sized vehicles. It features a robust all-steel construction with a dual hydraulic pump and pneumatic pump-up system for easy lifting. The lift includes safety features such as a lock device to prevent accidental lowering and a stippled surface for secure loading. Removable front wheel clamps and rear panels facilitate rear wheel changes for motorcycles. The base is equipped with transport wheels and lock downs to ensure stability during use. The lift can be used in different configurations, supporting various vehicle sizes with optional side platforms.

Technical Specifications

• Capacity: 680kg (1500lbs)
• Operating air pressure: 90psi (6.2bar)
• Air inlet: 1/4\" BSP
• Lifting range: 200-885mm
• Working height stops: 550mm, 720mm, 840mm
• Maximum height: 885mm
• Closed height: 200mm
• Table dimensions for motorcycle lift: 1950 x 680mm
• Table dimensions for ATV use: 1950 x 1220mm
• Motorcycle loading ramp: 850 x 150mm
• Rear wheel removal panel: 600 x 250mm
• Weight: 260kg

Compatibility and Accessories

• Suitable for motorcycles, ATVs, mini tractors, and small garden machinery
• Includes additional side platforms for wider vehicle accommodation
• Removable front wheel clamp and rear panel for rear wheel maintenance

Installation

• Delivered in a wooden crate for easy assembly
• Base fitted with transport wheels and lock downs for stability during operation
• Ensure proper connection of air supply at 90psi (6.2bar) using a 1/4\" BSP air inlet

Usage

• Position the lift on a flat, stable surface
• Connect to an air supply and operate the hydraulic and pneumatic systems to raise or lower the lift
• Use the
